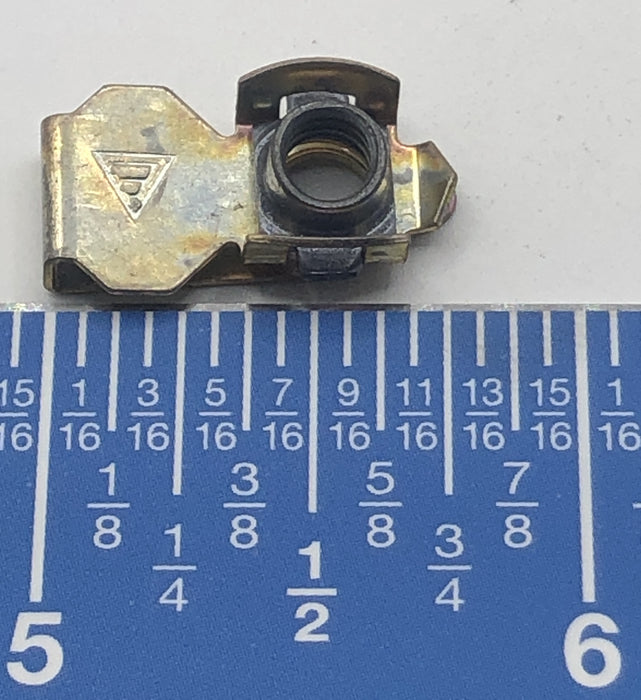

SL212M5-1 - Nut

Part number SL212M5-1 is a miniature aircraft-style self-locking clip nut assembly designed for secure threaded fastening in confined or vibration-prone installations. The component features a stamped cadmium/zinc plated steel retainer with an integrated floating threaded insert, allowing quick installation onto panels or structural members without requiring access to the backside for a conventional nut.

The spring-steel clip construction provides retention and alignment during assembly while the locking threaded section helps resist loosening from vibration and operational movement. Commonly used in aerospace, avionics, military hardware, and industrial equipment applications.

Dimensions

• Length: 20.34 mm
• Width: 11.20 mm
• Height: 4.51 mm

Configuration

• Type: Self-locking clip nut / speed nut
• Thread Feature: Floating threaded insert
• Material: Plated spring steel with steel nut element
• Finish: Corrosion-resistant metallic coating
• Mounting: Clip-on panel mounting design
• Features: Lightweight, vibration resistant, captive-style installation
• Applications: Aircraft panels, avionics mounting, electronic enclosures, access panels, and structural fastening systems
