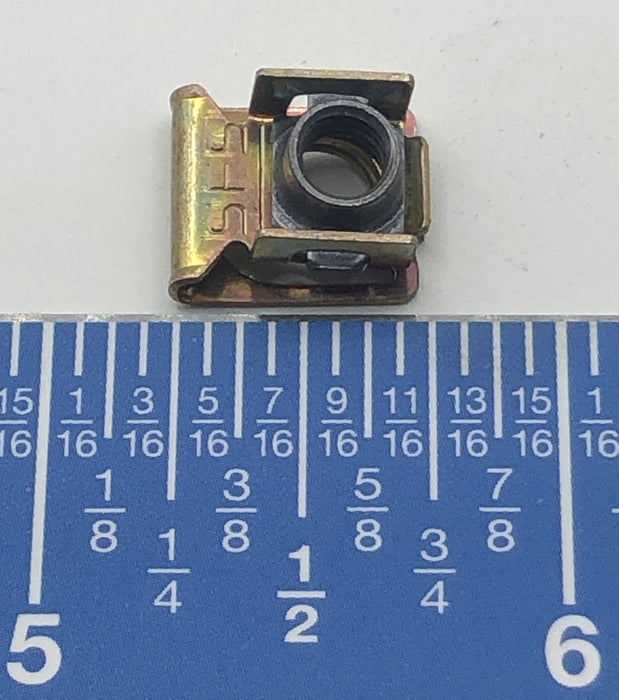

SL210M5-1 - Nut

Part number SL210M5-1 is a compact self-locking clip nut assembly designed for quick panel attachment and secure threaded fastening in vibration-sensitive environments. The component consists of a spring-steel clip retainer with an integrated floating threaded nut element, enabling easy installation onto sheet metal, brackets, or access panels without requiring backside access.

Its self-retaining clip design holds the nut in place during assembly, while the locking thread feature helps resist loosening under vibration and repeated service use. This style of hardware is commonly used in aerospace, avionics, military equipment, and industrial enclosure applications.

Dimensions

• Length: 13.16 mm
• Width: 11.09 mm
• Height: 5.37 mm

Configuration

• Type: Self-locking clip nut / cage-style speed nut
• Thread Style: Floating threaded insert
• Material: Plated spring steel with steel threaded nut
• Finish: Corrosion-resistant metallic coating
• Mounting Method: Clip-on panel mounting
• Features: Compact profile, vibration resistant, captive installation capability
• Applications: Aircraft structures, electronic panels, access covers, instrumentation mounts, and general mechanical fastening systems
