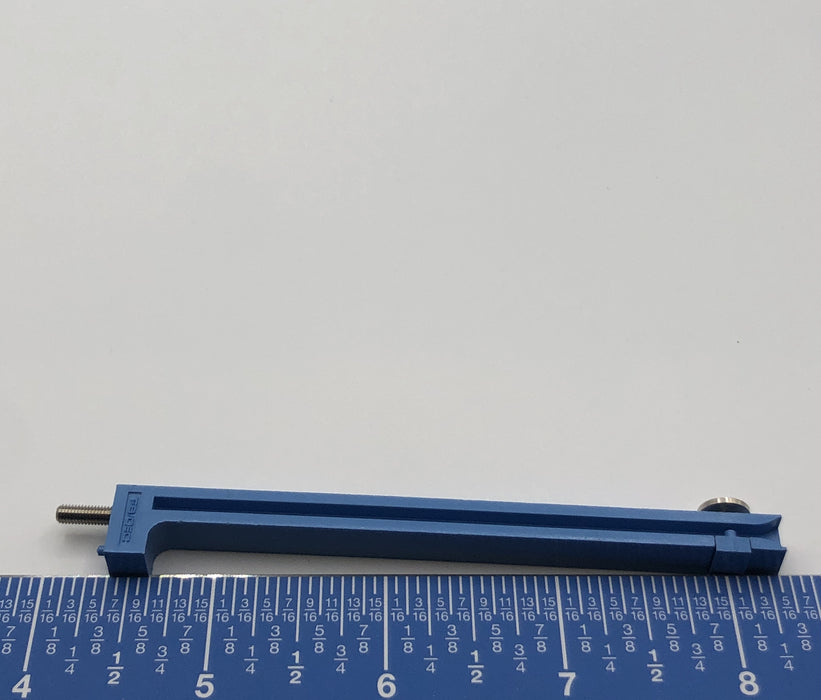

RC234VR - Printed Guide

Part number RC234VR is a retaining clip / latch assembly tool component, commonly used in aerospace interiors, galley equipment, or access panel retention systems. Based on the geometry shown, it consists of a molded blue structural arm with an integral threaded stud and roller end.

Measured Dimensions (from image)

• Overall Length: approximately 102 mm (4.0 in)
• Width: approximately 10 mm (0.39 in)
• Construction: molded engineering plastic arm with metallic threaded stud and roller/bearing end

Physical Characteristics

• Type: Retaining clip / guide arm assembly
• Material: High-strength molded plastic with metal hardware
• Color: Blue
• Features:
  • Threaded mounting stud on one end
  • Roller or bearing contact surface on opposite end
  • Lightweight non-corrosive construction
