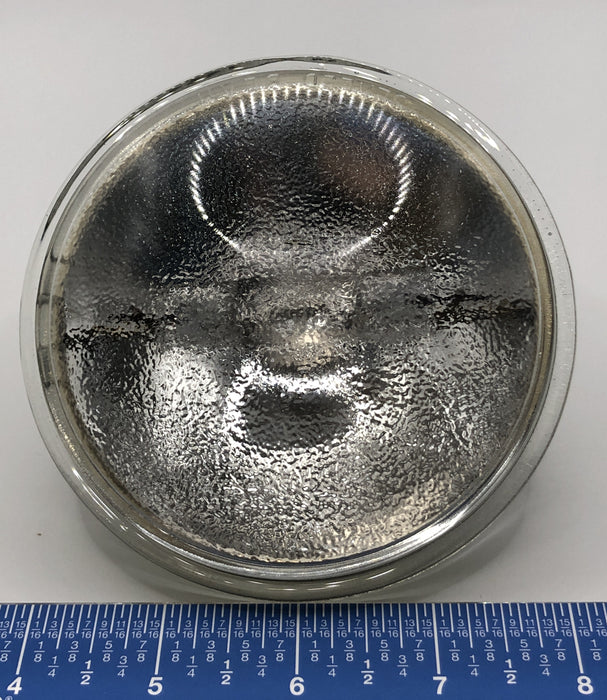

Q4632 - Lamp

Sealed aircraft landing/taxi light assembly designed for high-intensity illumination in aerospace and aviation applications. Part number Q4632 features a round PAR-style glass lamp construction with an integrated reflective housing and dual-terminal rear electrical connections for reliable high-output operation. The sealed-beam design protects the internal filament and reflector assembly from moisture, vibration, and environmental contamination, making it suitable for demanding aircraft service environments.

Dimensions

• Overall Diameter (OD): 111.04 mm
• Overall Height/Depth: 58.15 mm

Configuration

• Type: Sealed beam aircraft lamp
• Style: Round PAR-type illumination lamp
• Lens: Textured/prismatic glass lens for controlled light dispersion
• Housing: Reflective sealed metalized internal reflector

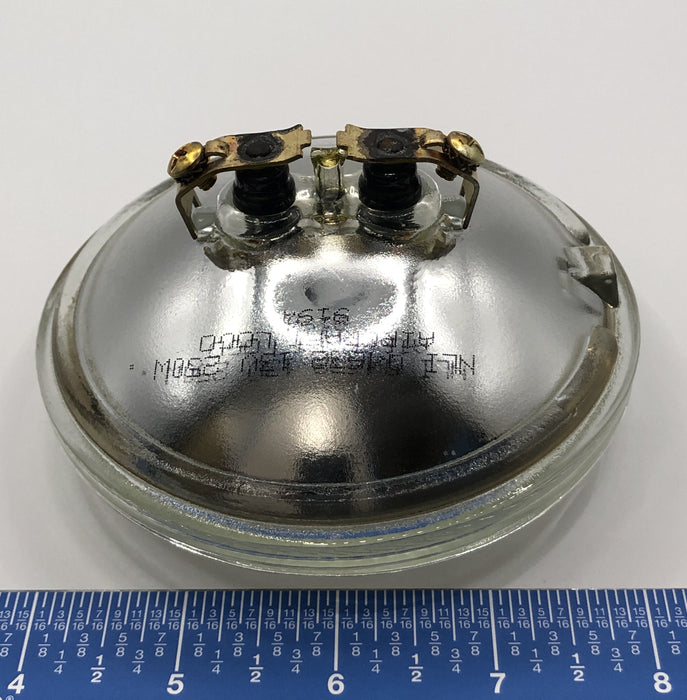

• Electrical Connection: Dual rear terminal screw contacts
• Mounting: Panel or fixture-mounted aviation lamp configuration
• Features: High-intensity output, vibration resistance, sealed environmental construction, durable glass lens
• Application: Aircraft landing lights, taxi lights, ground illumination systems, and aerospace lighting assemblies
