Q4566 - Lamp

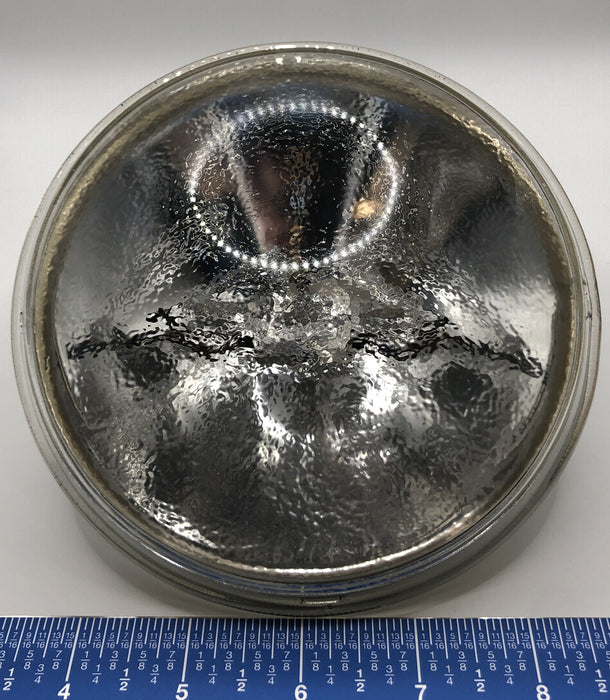

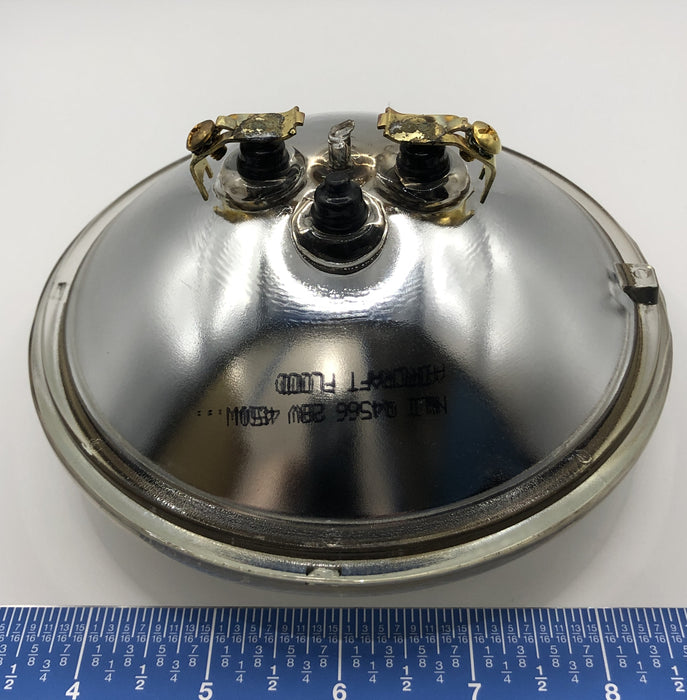

Sealed beam aircraft landing/taxi light assembly designed for high-output aerospace illumination systems. Part number Q4566 features a large round PAR-style sealed beam construction with a textured clear glass lens and internally mirrored reflector for focused light projection. The rear housing includes dual electrical screw terminals and a center alignment/contact post for secure aircraft electrical installation.

This lamp is engineered for use in aircraft landing, taxi, and auxiliary lighting applications where high vibration resistance and dependable illumination are required.

Dimensions

• Overall Diameter (OD): 144.06 mm
• Overall Height/Depth: 77.14 mm

Configuration

• Type: Sealed beam aircraft lamp
• Style: Round PAR-type incandescent/halogen light assembly
• Lens: Textured clear glass lens
• Reflector: Precision mirrored internal reflector
• Electrical Connections: Dual rear screw terminals with center locating/contact post
• Construction: Hermetically sealed glass and metal reflector housing
• Features: High-intensity output, vibration-resistant design, moisture-resistant sealed assembly
• Application: Aircraft landing lights, taxi lights, runway illumination, and exterior aerospace lighting systems
