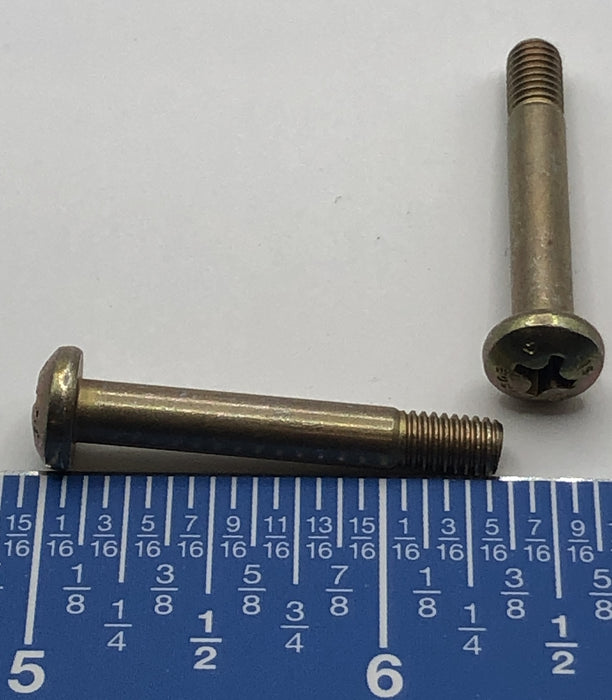

NAS7803-15 - Screw

Part number NAS7803-15 is a Phillips pan head machine screw manufactured to NAS aerospace standards for precision fastening applications requiring high strength, corrosion resistance, and reliable clamp performance.

Specifications

• Type: Pan Head Machine Screw
• Drive Type: Phillips recessed drive
• Shank Length: 32.06 mm
• Head Diameter: 4.65 mm
• Overall Length: 35.29 mm
• Head Style: Low-profile pan head
• Material: Aerospace alloy steel
• Finish: Cadmium or corrosion-resistant plated finish
• Thread Type: Fine machine thread
• Configuration: Partially threaded shank

Features

• Pan head provides broad bearing surface and strong clamping capability
• Phillips recess supports efficient installation with standard aerospace tools
• Long precision shank improves alignment and shear-load performance
• Aerospace-grade steel construction offers high tensile strength and durability
• Protective plated finish enhances corrosion resistance in demanding environments
• Manufactured to NAS standards for dimensional accuracy and interchangeability
