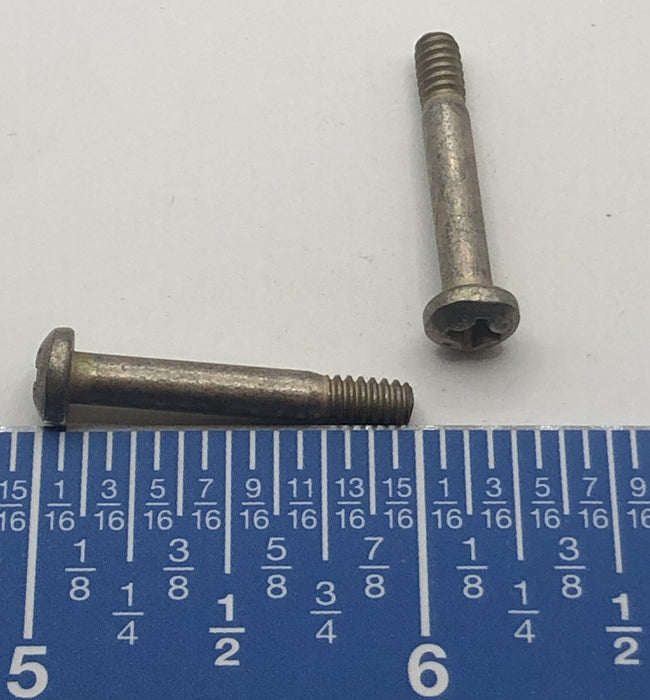

NAS7701-10 - Screw

Part number NAS7701-10 is a Phillips pan head machine screw manufactured to NAS aerospace standards for lightweight, precision fastening applications requiring corrosion resistance and reliable clamp performance.

Specifications

• Type: Pan Head Machine Screw
• Drive Type: Phillips recessed drive
• Shank Length: 23.15 mm
• Head Diameter: 3.36 mm
• Overall Length: 25.47 mm
• Head Style: Low-profile pan head
• Material: Corrosion-resistant steel (CRES/Stainless Steel)
• Finish: Passivated stainless finish
• Thread Type: Fine machine thread
• Configuration: Partially threaded shank

Features

• Pan head design provides increased bearing surface and secure clamping
• Phillips drive allows easy installation using standard aerospace tooling
• Long unthreaded shank improves alignment and shear-load capability
• Corrosion-resistant stainless construction suitable for harsh operating environments
• Manufactured to NAS standards for aerospace interchangeability and dimensional precision
• Lightweight precision fastener suitable for structural and panel applications
