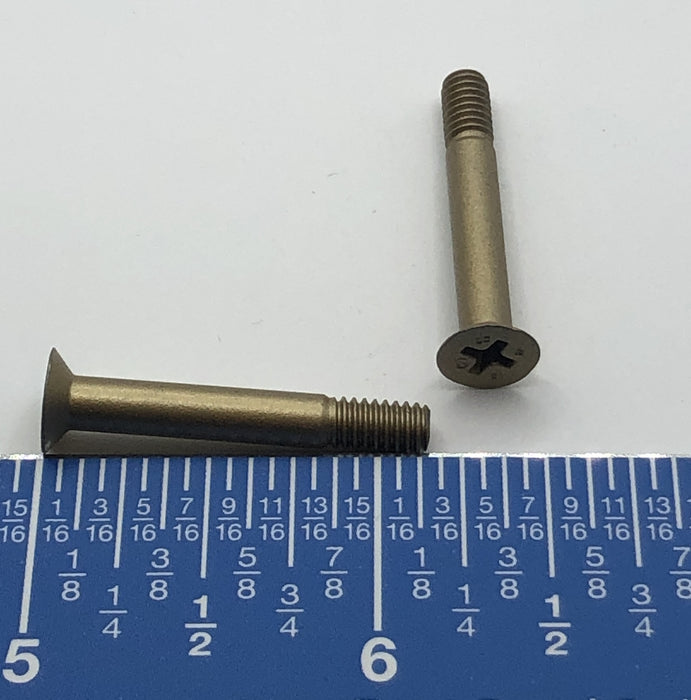

NAS7502A13 - Screw

Part number NAS7502A13 is a 100° flush head Phillips machine screw manufactured to NAS aerospace standards for precision structural fastening where a smooth flush surface and high-strength performance are required.

Specifications

• Type: Flush Head Machine Screw
• Standard: NAS7502 Series
• Drive Type: Phillips recessed drive
• Shank Length: 27.09 mm
• Head Diameter: 4.06 mm
• Overall Length: 29.04 mm
• Head Style: 100° countersunk flush head
• Material: Aerospace alloy steel
• Finish: Corrosion-resistant cadmium or equivalent protective coating
• Thread Type: Fine machine thread
• Configuration: Partially threaded shank

Features

• Flush countersunk head provides low-profile aerodynamic installation
• Precision shank improves alignment and shear strength capability
• Phillips recess compatible with standard aerospace tooling
• High-strength alloy construction for structural aircraft use
• Corrosion-resistant finish suitable for harsh operating environments
• NAS-standard dimensions ensure interchangeability and reliability
