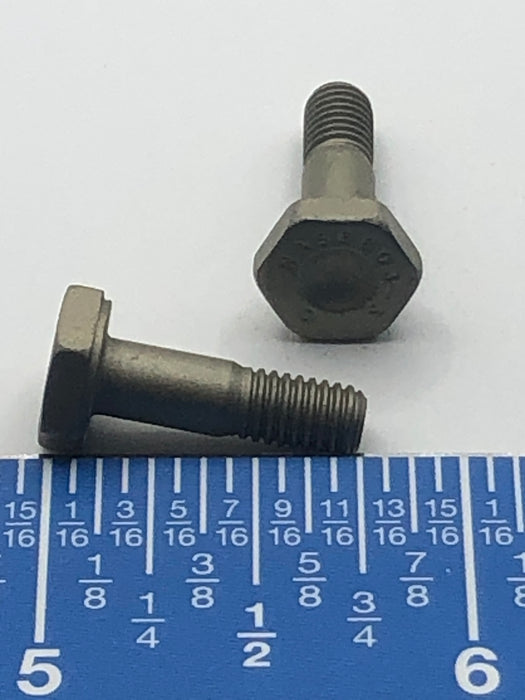

NAS6803A5 - Bolt

Hex head bolt with a partially threaded shank for high-strength, precision fastening in aerospace and high-performance mechanical assemblies. The bolt features a robust hex head for wrench tightening and a controlled thread length for proper load distribution and shear strength. Designed for use with compatible nuts or threaded components where reliability and structural integrity are critical.

Dimensions

• L (Shank Length): 16.40 mm
• W (Head Diameter): 3.57 mm
• OL (Overall Length): 18.44 mm

Configuration

• Type: Hex head bolt
• Thread: Partially threaded
• Drive: External hex
• Point: Flat end

Features

• Aerospace-grade precision and strength
• Partially threaded design for improved shear performance
• Hex head allows secure torque application
• Consistent dimensional tolerances for critical assemblies
• Suitable for high-stress and vibration-prone environments
