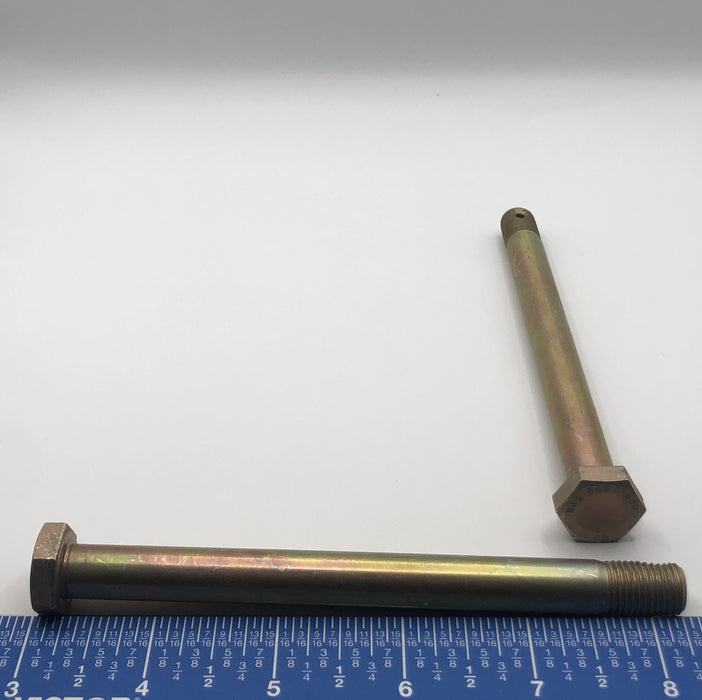

NAS6607D69 - Bolt

Hex head bolt with a long, precision-ground shank and partially threaded end, allowing for safety wire or cotter pin installation to prevent loosening in high-vibration environments. The extended grip length provides excellent shear strength, making it ideal for structural and pivot applications in aerospace and heavy-duty assemblies.

Dimensions

• Shank Length: 127.69 mm
• Head Diameter: 9.98 mm
• Overall Length: 132.78 mm

Configuration

• Type: Hex head bolt
• Thread: Partially threaded
• Drive: External hex
• Point: Flat end with cross-drilled hole
• Feature: Drilled shank for safety wire or cotter pin

Features

• Aerospace-grade strength and precision tolerances
• Long grip length for high shear load applications
• Cross-drilled hole enables positive locking
• Corrosion-resistant plated finish
• Designed for critical structural connections
