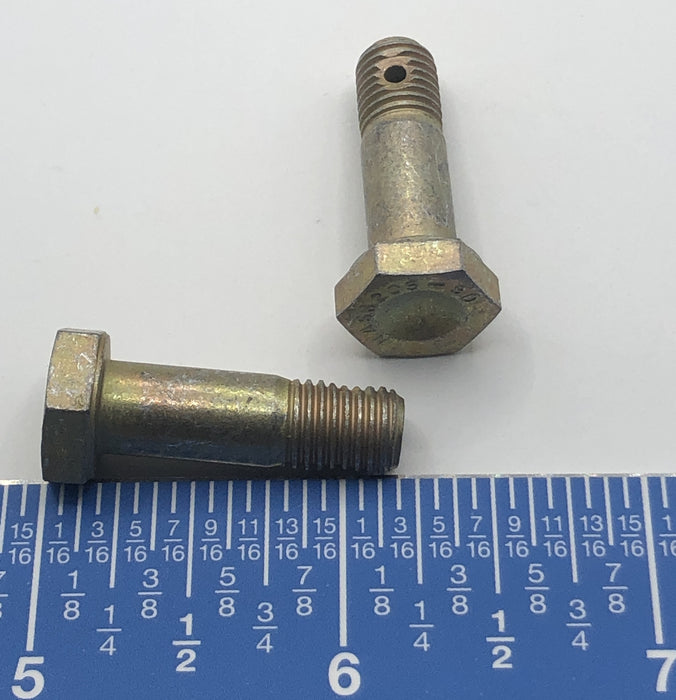

NAS6205-9D - Bolt

Hex head bolt with a partially threaded shank and cross-drilled hole through the threaded portion. Designed for secure fastening in high-vibration environments, the drilled feature allows installation of safety wire or cotter pin to prevent loosening. The precision shank provides proper load distribution and enhanced shear strength for critical applications.

Dimensions

• L (Shank Length): 25.57 mm
• W (Head Diameter): 6.71 mm
• OL (Overall Length): 29.21 mm

Configuration

• Type: Hex head bolt
• Thread: Partially threaded
• Drive: External hex
• Point: Flat end with cross-drilled hole
• Feature: Drilled thread for safety wire or cotter pin

Features

• Aerospace-grade strength and precision tolerances
• Cross-drilled thread enables positive locking (safety wire/cotter pin)
• Partially threaded design improves shear performance
• Smooth shank for accurate fit in close-tolerance holes
• Corrosion-resistant plated finish
