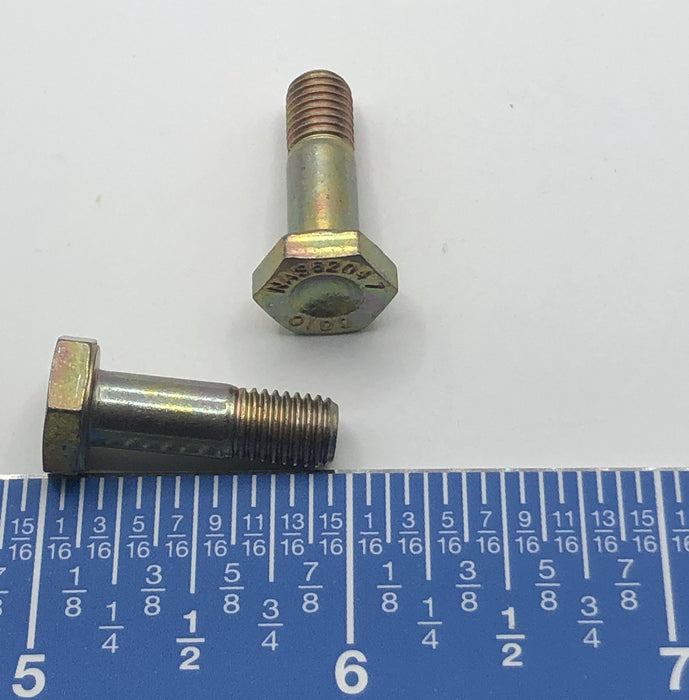

NAS6204-7 - Bolt

Hex head bolt with a partially threaded shank. Designed to provide reliable clamping and improved shear performance, the smooth shank ensures proper alignment in close-tolerance holes. Ideal for use in critical assemblies where durability and consistency are required.

Dimensions

• L (Shank Length): 20.20 mm
• W (Head Diameter): 5.14 mm
• OL (Overall Length): 23.51 mm

Configuration

• Type: Hex head bolt
• Thread: Partially threaded
• Drive: External hex
• Point: Flat end

Features

• Aerospace-grade strength and precision tolerances
• Partially threaded design enhances shear load capability
• Smooth shank for accurate fit and load distribution
• Corrosion-resistant plated finish
• Suitable for high-stress and vibration environments
