NAS463XC10 - Shim

Part number NAS463XC10 is a precision aerospace shim plate manufactured to NAS (National Aerospace Standard) specifications for alignment, spacing, and fit adjustment applications in aircraft assemblies.

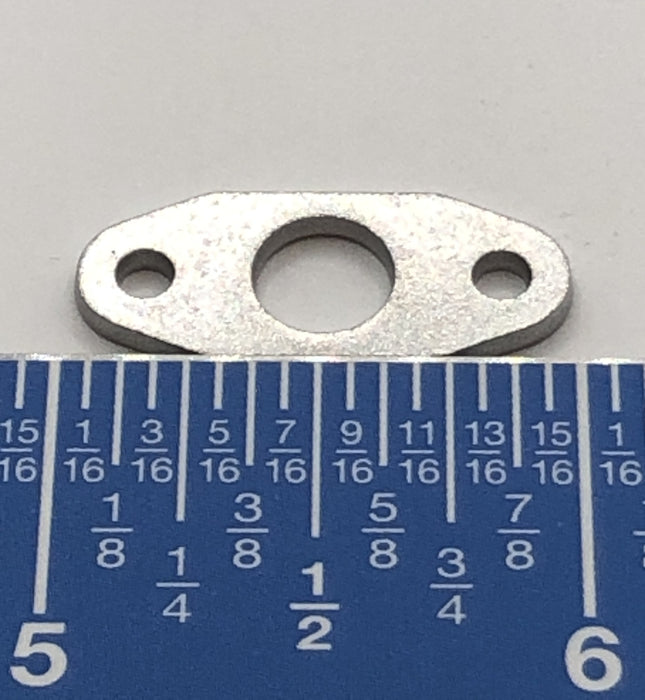

The shim features a flat oblong configuration with a central clearance hole and two mounting holes for secure positioning between mating components.

Specifications

• Part Number: NAS463XC10
• Type: Precision shim plate
• Specification: NAS463
• Length: 24.52 mm
• Width: 10.23 mm
• Thickness: 1.61 mm
• Material: Corrosion-resistant metallic alloy
• Configuration: Flat shim with center clearance hole and dual mounting holes

Features

• Precision thickness for alignment and tolerance correction
• Lightweight low-profile aerospace design
• Dual mounting holes for accurate positioning
• Central clearance opening for fastener or component passage
• Corrosion-resistant metallic construction
• Suitable for structural and equipment mounting adjustments
