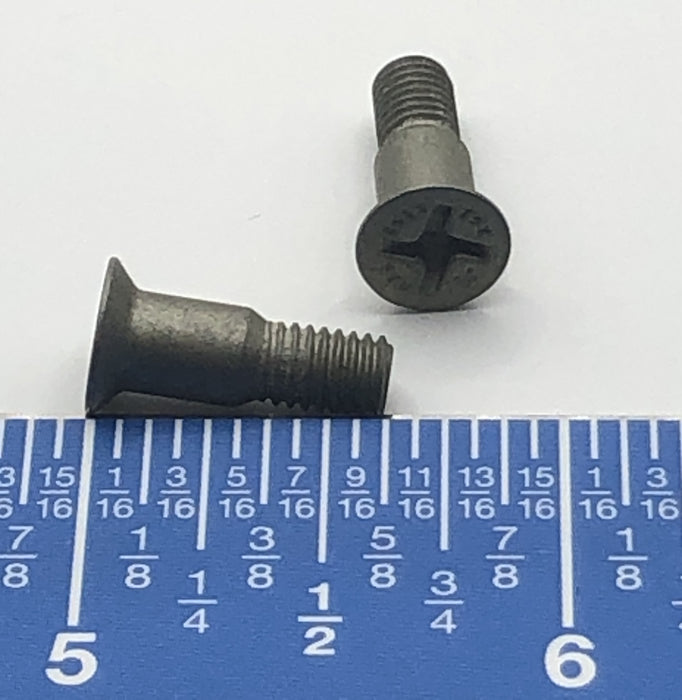

NAS2833T5PTY - Screw

Countersunk (flush head) machine screw with a partially threaded shank. The flat head allows the screw to sit flush with the material surface, while the controlled thread length provides reliable clamping in threaded holes or when used with nuts.

Dimensions

• L (Shank Length): 14.28 mm
• W (Head Diameter): 3.67 mm
• OL (Overall Length): 15.04 mm

Configuration

• Type: Countersunk (flat head) machine screw
• Thread: Partially threaded
• Drive: Phillips (cross-recess)
• Point: Flat end

Features

• Flush-mount design for smooth, low-profile surfaces
• Aerospace-grade construction with tight tolerances
• Partially threaded shank for improved alignment and load distribution
• Corrosion-resistant finish
• Suitable for vibration-resistant and high-precision assemblies
