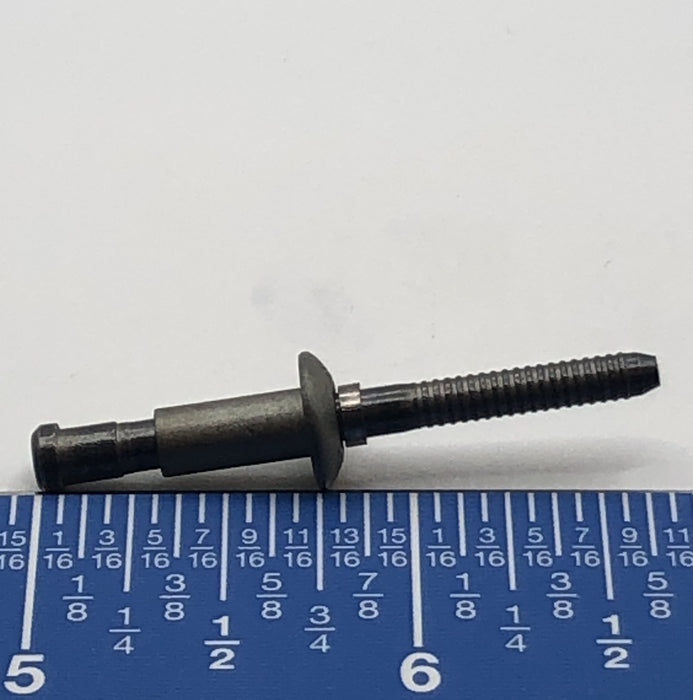

NAS1919M06S04A - Rivet

Part number NAS1919M06S04A is a 3/16-inch diameter protruding head blind rivet with a mechanically locked serrated stem, designed for aerospace structural applications requiring one-sided installation.

Specifications

• Series: NAS1919
• Type: Blind rivet / bulbed mechanically locked rivet
• Head Style: Universal (protruding) head
• Diameter: 3/16 in. (0.187")
• Grip Range: 0.188 – 0.250 in.
• Fastener Length: Approx. 0.412 in.
• Sleeve Material: Monel (“M”)
• Stem Material: A-286 stainless steel
• Finish Code: Aluminum coating (“A”)
• Installation Style: Single-action, non-shifting tooling (“S”)
• Stem Type: Serrated mechanically locked spindle
• NSN: 5320-01-092-9971

Features

• Mechanically locked stem for vibration resistance
• Bulbed blind-side expansion for improved load distribution
• Designed for blind installation where only one side is accessible
• Monel sleeve provides excellent corrosion resistance
• Flush stem break for aerodynamic installations
• Compatible with Cherry 1900-series tooling systems
