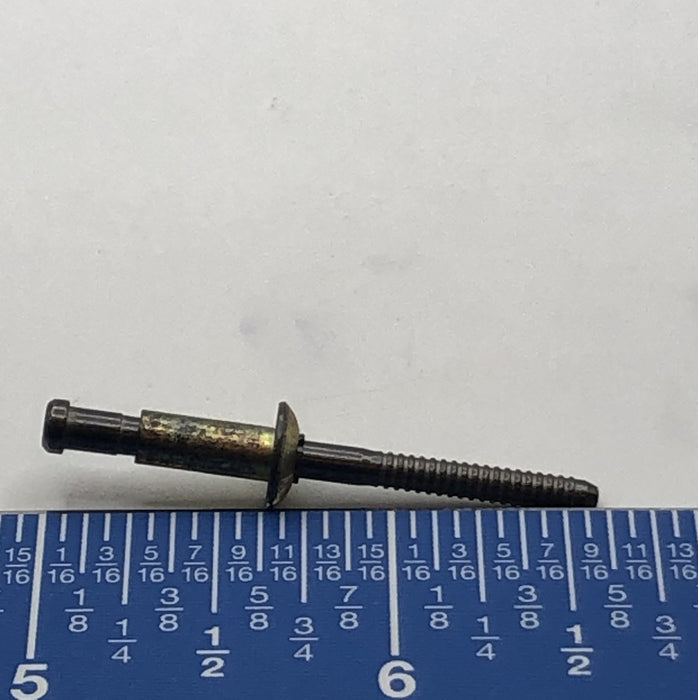

NAS1919M05-04W - Rivet

Part number NAS1919M05-04W is a protruding head mechanically locked blind rivet designed for aerospace structural fastening applications where access is available from only one side of the structure.

Specifications

• Series: NAS1919
• Type: Blind rivet / mechanically locked stem rivet
• Head Style: Universal (protruding) head
• Diameter: 5/32 in. (0.156")
• Grip Range: 0.188 – 0.250 in.
• Fastener Length: Approx. 0.388 in.
• Sleeve Material: Monel alloy (“M”)
• Stem Material: A-286 stainless steel / Alloy 660
• Finish: Cadmium plated with chromate conversion coating (“W”)
• Stem Type: Serrated mechanically locked stem
• Installation: Blind installation from one side only
• NSN: 5320-00-971-7722

Features

• Mechanically locked stem provides high vibration resistance
• Blind installation ideal for limited-access structures
• Monel sleeve offers excellent corrosion resistance
• High-strength aerospace structural fastener
• Serrated stem improves retention and clamp performance
• Self-plugging design helps seal the installed rivet body
