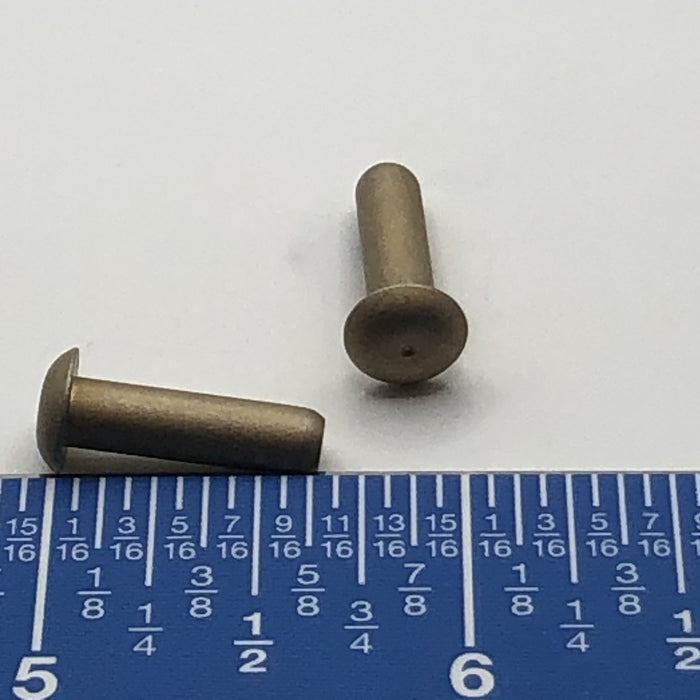

NAS1242AD5-10 - Rivet

Part number NAS1242AD5-10 is a universal head solid repair rivet manufactured from 2117-T4 aluminum alloy for aircraft structural and sheet metal fastening applications. The NAS1242 series is commonly used as an oversize repair replacement for standard MS20470 universal head rivets.

Specifications

• Series: NAS1242
• Type: Solid repair rivet
• Head Style: Universal head
• Material: 2117-T4 aluminum alloy (“AD”)
• Diameter: 5/32 in. oversize repair shank (approx. 11/64 in.)
• Length: 5/8 in.
• Shank Type: Solid shank with radius chamfered tip
• Finish: Anodized / chem film coating
• Shear Strength: Approx. 26,000 psi
• NSN: 5320-01-222-8680

Features

• Oversize repair rivet designed to replace damaged or enlarged standard rivet holes
• Universal head provides strong structural fastening capability
• 2117-T4 aluminum offers good strength with excellent corrosion resistance
• Heat-treated aluminum alloy suitable for aircraft structural repairs
• Compatible replacement for many MS20470 repair applications
