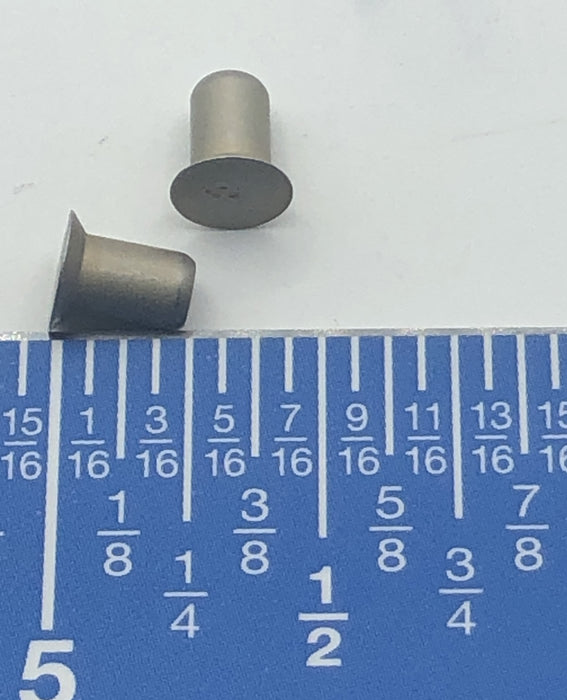

NAS1097AD5-4 - Rivet

Part number NAS1097AD5-4 is a 100° flush head reduced-head solid rivet (“oops rivet”) made from 2117-T4 aluminum alloy for aircraft structural and sheet metal repair applications.

Specifications

• Series: NAS1097
• Type: Reduced-head flush solid rivet
• Head Style: 100° countersunk flush shear head
• Material: 2117-T4 aluminum alloy (“AD”)
• Diameter: 5/32 in. (0.156")
• Length: 1/4 in. (0.250")
• Finish: Anodized / gold chem film conversion coating
• Shank Type: Solid shank

Features

• Reduced head diameter equals the head size of the next smaller standard flush rivet
• Allows repair of enlarged rivet holes while maintaining flush appearance
• Lightweight and corrosion resistant aluminum construction
• Designed for aircraft sheet metal and structural shear applications
• Commonly used where minimal countersink enlargement is desired
