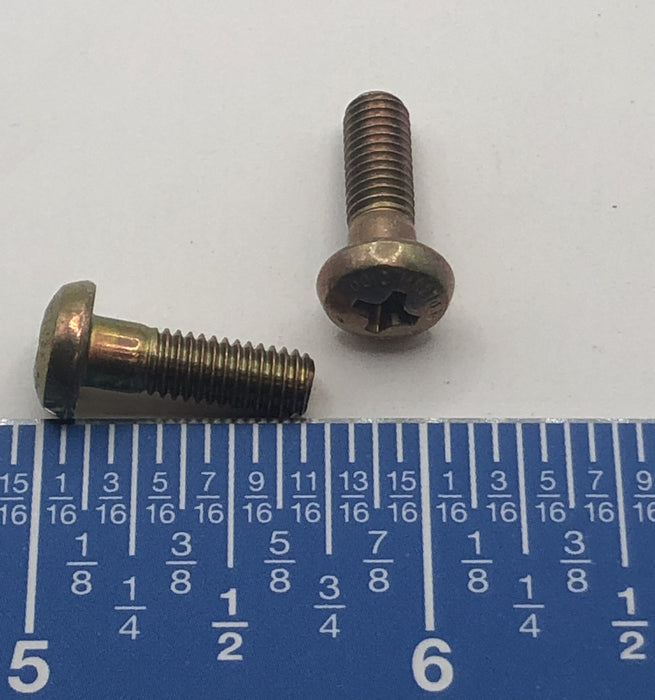

MS27039-1-09 - Screw

Part number MS27039-1-09 is a Phillips pan head machine screw manufactured to military aerospace standards for high-strength fastening applications requiring corrosion resistance and reliable installation.

Specifications

• Type: Pan Head Machine Screw
• Drive Type: Phillips recessed drive
• Shank Length: 15.36 mm
• Head Diameter: 4.73 mm
• Overall Length: 18.55 mm
• Head Style: Low-profile pan head
• Material: Alloy steel / corrosion-resistant steel
• Finish: Cadmium or zinc chromate plated aerospace finish
• Thread Type: Fine machine thread

Features

• Pan head design provides broad clamping surface with low installed profile
• Phillips drive allows quick installation and controlled torque application
• Precision-machined partially threaded shank improves alignment and load distribution
• Corrosion-resistant finish suitable for aerospace and military environments
• Manufactured to MS military specification standards for dimensional consistency and interchangeability
• High-strength construction for vibration-resistant fastening applications
