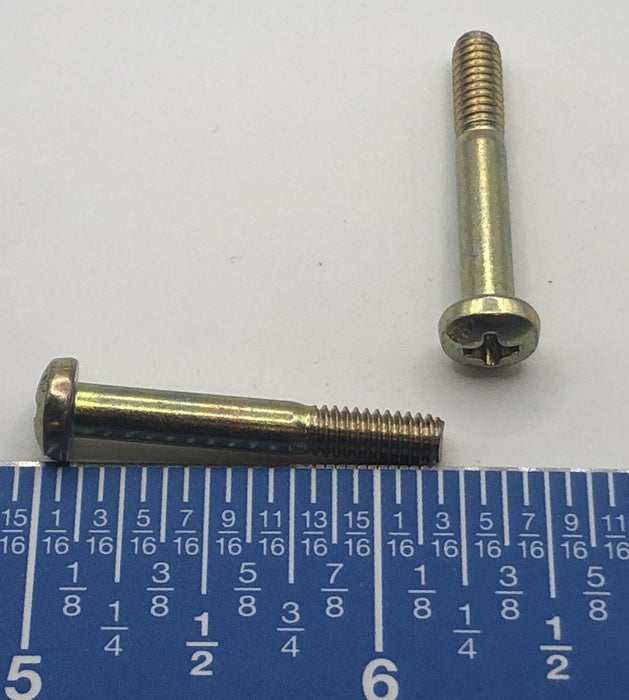

MS27039-0817 - Screw

Part number MS27039-0817 is a Phillips pan head machine screw manufactured to military aerospace standards for structural fastening and precision assembly applications requiring corrosion resistance and high reliability.

Specifications

• Type: Pan Head Machine Screw
• Drive Type: Phillips recessed drive
• Shank Length: 28.02 mm
• Head Diameter: 4.10 mm
• Overall Length: 30.90 mm
• Head Style: Low-profile pan head
• Material: Alloy steel / corrosion-resistant steel
• Finish: Cadmium or zinc chromate plated aerospace finish
• Thread Type: Fine machine thread
• Configuration: Partially threaded shank

Features

• Precision-machined shank improves alignment and shear strength
• Pan head design provides a broad bearing surface with low installed profile
• Phillips drive allows efficient installation and controlled torque application
• Corrosion-resistant plating suitable for aerospace and military environments
• Manufactured to MS military specifications for dimensional consistency and interchangeability
• Partially threaded body enhances clamping performance in structural assemblies
