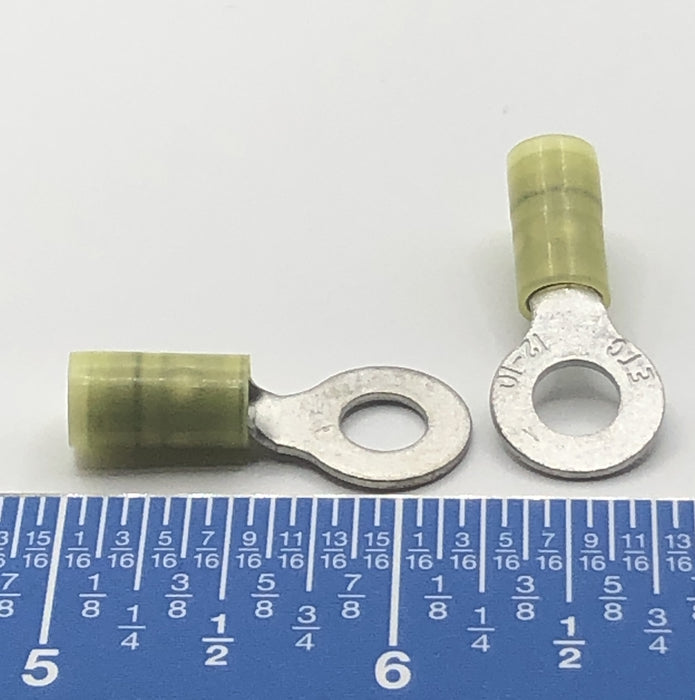

MS25036-157 - Terminal Lug

Part number MS25036-157 is a PIDG insulated ring terminal lug designed for crimp termination of 12–10 AWG wire to a 1/4-inch stud connection. It is commonly used in aircraft, military, and industrial electrical wiring applications.

Specifications

• Series: MS25036
• Terminal Type: Ring terminal / lug
• Wire Size: 12–10 AWG
• Stud Size: 1/4 in. (M6)
• Termination Method: Crimp
• Insulation: Nylon insulated (yellow sleeve)
• Material: Tin-plated copper
• Voltage Rating: 300 VAC
• Color Code: Yellow
• NSN: 5940-00-143-4777

Features

• Pre-insulated PIDG (Pre-Insulated Diamond Grip) construction for vibration resistance.
• Crimp barrel provides secure wire retention and electrical conductivity.
• Ring tongue design prevents accidental disconnection from stud-mounted terminals.
• Suitable for aerospace, military, and commercial electrical systems.
