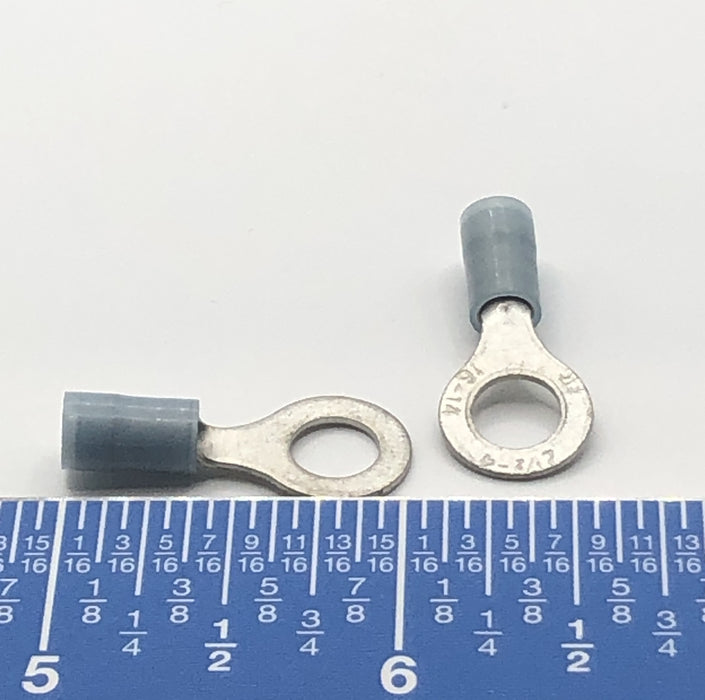

MS25036-154 - Terminal Lug

Part number MS25036-154 is a PIDG insulated ring terminal lug designed for crimp attachment of 16–14 AWG wire to a 1/4-inch stud (M6) connection. It is commonly used in aircraft, military, and industrial electrical wiring systems.

Specifications

• Series: MS25036
• Terminal Type: Ring terminal lug
• Wire Size: 16–14 AWG
• Stud Size: 1/4 in. (M6)
• Termination Method: Crimp
• Insulation: Nylon insulated
• Sleeve Color: Blue
• Material: Tin-plated copper
• Voltage Rating: 300 VAC
• NSN: 5940-00-230-0515

Features

• Pre-insulated PIDG (Pre-Insulated Diamond Grip) construction for vibration resistance.
• Provides secure electrical and mechanical wire termination.
• Ring tongue design prevents accidental disconnection from screw or stud terminals.
• Suitable for aerospace, military, commercial, and industrial wiring applications.
