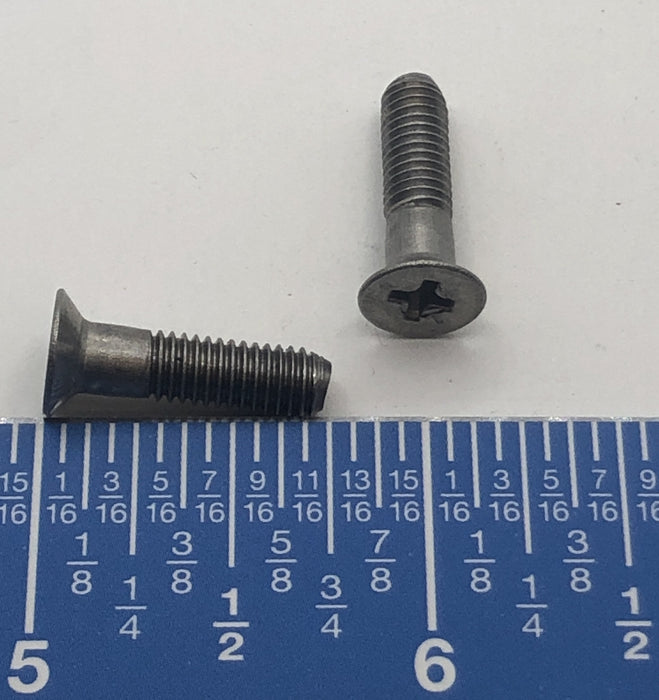

MS24694C53 - Screw

Part number MS24694C53 is a Phillips flat head machine screw manufactured to military aerospace standards for flush-mounted fastening applications requiring corrosion resistance, precise fit, and structural reliability.

Specifications

• Type: Flat Head Machine Screw
• Drive Type: Phillips recessed drive
• Shank Length: 16.14 mm
• Head Diameter: 4.77 mm
• Overall Length: 18.56 mm
• Head Style: 82° countersunk flat head
• Material: Corrosion-resistant steel (CRES/Stainless Steel)
• Finish: Passivated stainless finish
• Thread Type: Fine machine thread
• Configuration: Partially threaded shank

Features

• Flush countersunk head provides smooth aerodynamic surface after installation
• Phillips drive allows dependable torque application with standard tooling
• Precision-machined partially threaded shank improves alignment and shear performance
• Stainless steel construction resists corrosion and environmental exposure
• Built to MS military specification standards for aerospace interchangeability and quality consistency
• Suitable for structural and panel fastening where flush surfaces are required
