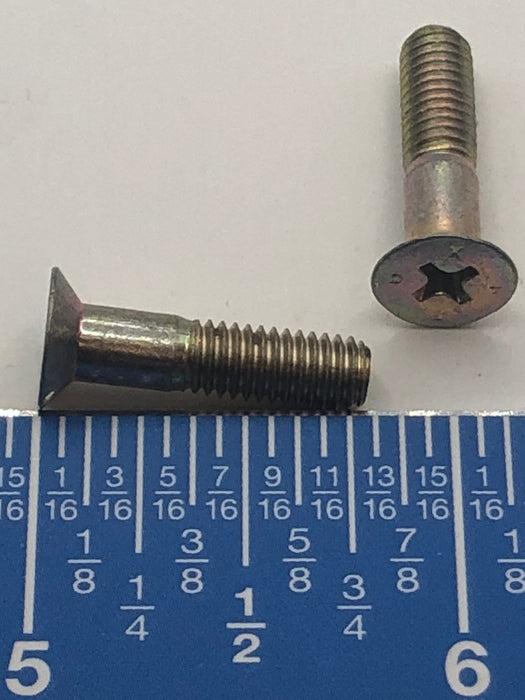

MS24694-S54 - Screw

Part number MS24694-S54 is a Phillips flat head machine screw manufactured to military aerospace standards for flush-mount fastening applications requiring reliable mechanical strength and corrosion resistance.

Specifications

• Type: Flat Head Machine Screw
• Drive Type: Phillips recessed drive
• Shank Length: 17.88 mm
• Head Diameter: 4.75 mm
• Overall Length: 19.95 mm
• Head Style: 82° countersunk flat head
• Material: Alloy steel / corrosion-resistant steel
• Finish: Cadmium or zinc chromate plated aerospace finish
• Thread Type: Fine machine thread
• Configuration: Partially threaded shank

Features

• Countersunk flat head provides a flush installed surface
• Phillips drive allows efficient installation and controlled torque application
• Precision-machined shank improves alignment and load distribution
• Corrosion-resistant finish suitable for aerospace and military environments
• Manufactured to MS military specification standards for dimensional consistency and interchangeability
• Partially threaded design enhances clamping performance in structural assemblies
