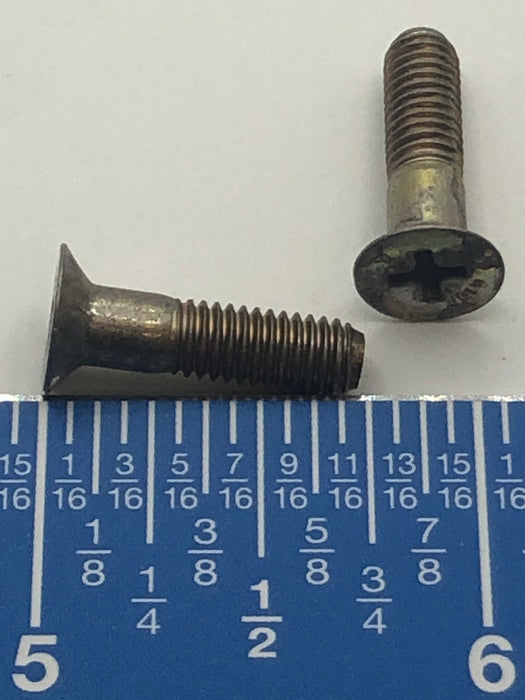

MS24694-S53 - Screw

Part number MS24694-S53 is a Phillips flat head machine screw manufactured to military aerospace standards for flush-surface fastening applications requiring dependable strength, precision fit, and corrosion resistance.

Specifications

• Type: Flat Head Machine Screw
• Drive Type: Phillips recessed drive
• Shank Length: 15.75 mm
• Head Diameter: 4.74 mm
• Overall Length: 18.44 mm
• Head Style: 82° countersunk flat head
• Material: Alloy steel / corrosion-resistant steel
• Finish: Cadmium or zinc chromate plated aerospace finish
• Thread Type: Fine machine thread
• Configuration: Partially threaded shank

Features

• Countersunk flat head provides a smooth flush installation surface
• Phillips drive allows controlled torque and easy installation
• Precision-machined shank improves alignment and structural load distribution
• Corrosion-resistant finish suitable for aerospace and military service environments
• Manufactured to MS military specification standards for interchangeability and reliability
• Partially threaded body enhances clamping performance in assembled structures
