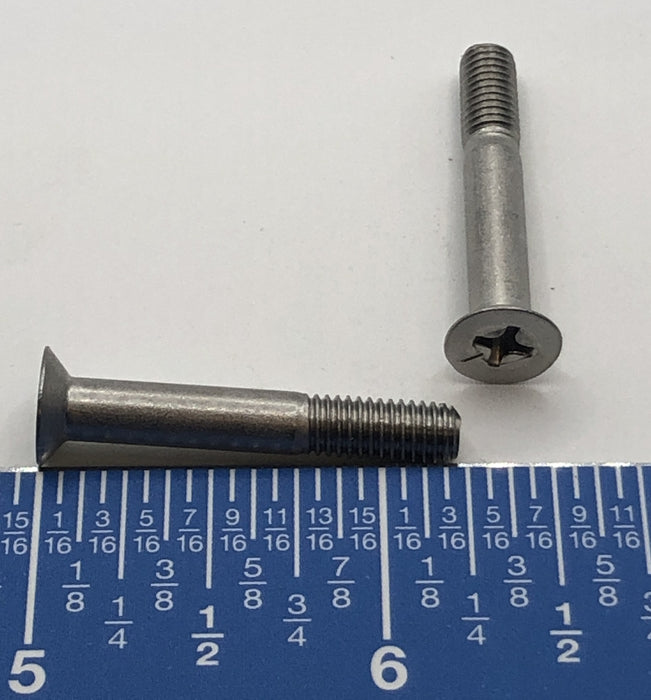

MS24694-C61 - Screw

Part number MS24694-C61 is a Phillips flat head machine screw manufactured to military aerospace standards for flush-mounted fastening applications where corrosion resistance, strength, and precision fit are required.

Specifications

• Type: Flat Head Machine Screw
• Drive Type: Phillips recessed drive
• Shank Length: 29.29 mm
• Head Diameter: 4.73 mm
• Overall Length: 31.24 mm
• Head Style: 82° countersunk flat head
• Material: Corrosion-resistant steel (CRES/Stainless Steel)
• Finish: Passivated stainless finish
• Thread Type: Fine machine thread
• Configuration: Partially threaded shank

Features

• Flat countersunk head allows flush surface installation
• Phillips drive enables reliable torque transfer and easy installation
• Long precision shank supports alignment and shear-load applications
• Corrosion-resistant stainless construction suitable for harsh environments
• Manufactured to MS military specification standards for aerospace interchangeability and dimensional accuracy
• Partially threaded body improves clamping and structural fit
