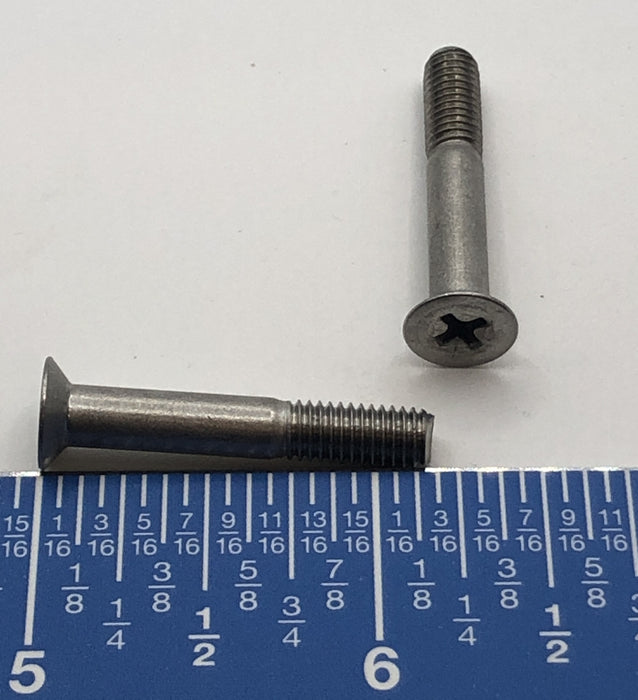

MS24694-C60 - Screw

Part number MS24694-C60 is a Phillips flat head machine screw designed to military aerospace standards for flush-fit fastening applications requiring corrosion resistance, precise alignment, and high structural reliability.

Specifications

• Type: Flat Head Machine Screw
• Drive Type: Phillips recessed drive
• Shank Length: 28.00 mm
• Head Diameter: 4.77 mm
• Overall Length: 29.85 mm
• Head Style: 82° countersunk flat head
• Material: Corrosion-resistant steel (CRES/Stainless Steel)
• Finish: Passivated stainless finish
• Thread Type: Fine machine thread
• Configuration: Partially threaded shank

Features

• Flush countersunk head minimizes aerodynamic drag and surface protrusion
• Phillips recess allows secure installation with standard aerospace tooling
• Long unthreaded shank provides accurate alignment and improved shear strength
• Stainless steel construction offers excellent corrosion resistance
• Manufactured to MS military standards for interchangeability and dimensional consistency
• Suitable for structural and panel fastening where flush surfaces are required
