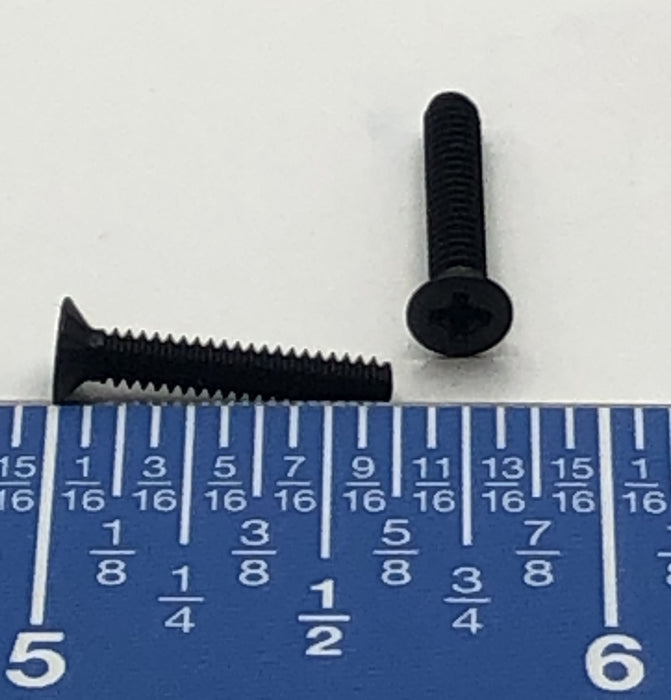

MS24693BB7 - Screw

Part number MS24693BB7 is a 100° flush head miniature machine screw designed for aerospace and electronic assembly applications requiring a small-diameter precision fastener with a countersunk flush finish.

Specifications

• Type: Miniature machine screw
• Head Style: 100° countersunk flush head
• Drive Type: Cross recess (Phillips) drive
• Shank Length: 14.07 mm
• Head Diameter: 2.80 mm
• Overall Length: 15.56 mm
• Thread Style: Fully threaded
• Material: Alloy steel / corrosion-resistant aerospace material
• Finish: Black protective finish

Features

• Small flush head minimizes surface protrusion
• Fully threaded body provides secure fastening
• Phillips drive enables easy installation and removal
• Lightweight miniature aerospace hardware design
• Precision-machined for tight-tolerance assemblies
• Protective black finish improves corrosion resistance and reduces reflectivity
