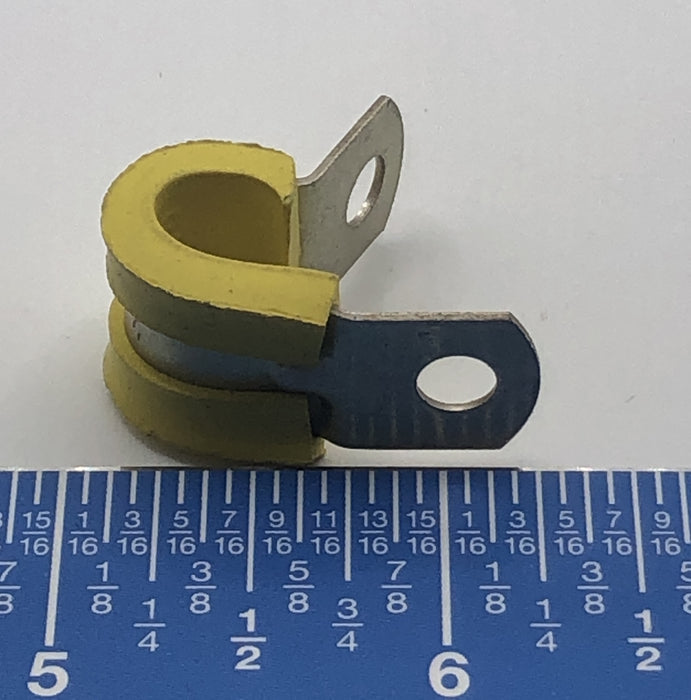

MS21919WDF4 - Clamp

Cushioned loop clamp designed for secure support and routing of tubing, wiring, and hoses in mechanical, aerospace, and industrial applications. The clamp features a metal band lined with an elastomer cushion that reduces vibration, prevents abrasion, and protects the secured component. Dual mounting tabs with pre-drilled holes provide reliable attachment to panels or structural surfaces.

Dimensions

• Length (L): 28.86 mm
• Width (W): 15.01 mm
• Height (H): 15.81 mm

Configuration

• Type: Cushioned loop clamp (Adel clamp)
• Style: Single loop with dual mounting tabs
• Material: Metal band with elastomer cushion
• Finish: Corrosion-resistant coated metal with bonded rubber lining
• Operation: Fixed mounting using fasteners through tab holes
• Application: Securing hoses, cables, and tubing in aerospace systems, vehicles, machinery, and general-purpose installations
