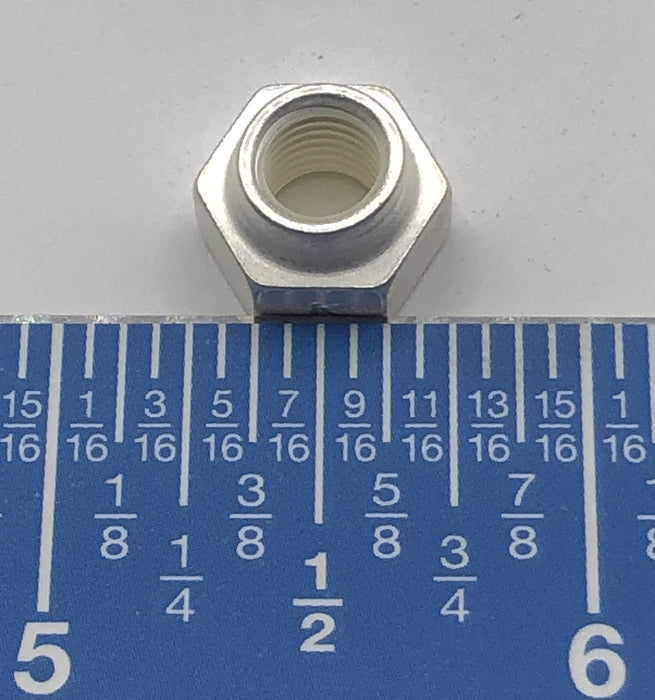

MS21046C4E - Nut

Part number MS21046C4E is a military-standard all-metal self-locking hex nut designed for high-strength fastening applications in aerospace and vibration-prone environments. This compact prevailing-torque nut features a deformed top locking section that maintains clamp load and resists loosening without requiring a separate lock washer or insert.

Manufactured from corrosion-resistant metal alloy material, the nut is commonly used in aircraft structures, engine compartments, avionics assemblies, and other critical mechanical fastening systems where reliability and vibration resistance are essential.

Dimensions

• ID: 5.90 mm
• Hex OD: 9.92 mm
• Height: 6.86 mm

Configuration

• Type: All-metal self-locking hex nut
• Standard: MS21046 military specification
• Series: C4E
• Thread Style: Internal machine thread
• Locking Method: Prevailing torque deformed-thread design
• Material: Corrosion-resistant alloy steel/stainless construction
• Finish: Protective metallic finish
• Features: Lightweight, vibration resistant, reusable locking action, compact profile
• Applications: Aerospace structures, avionics equipment, engine assemblies, panel retention, and high-reliability fastening systems
