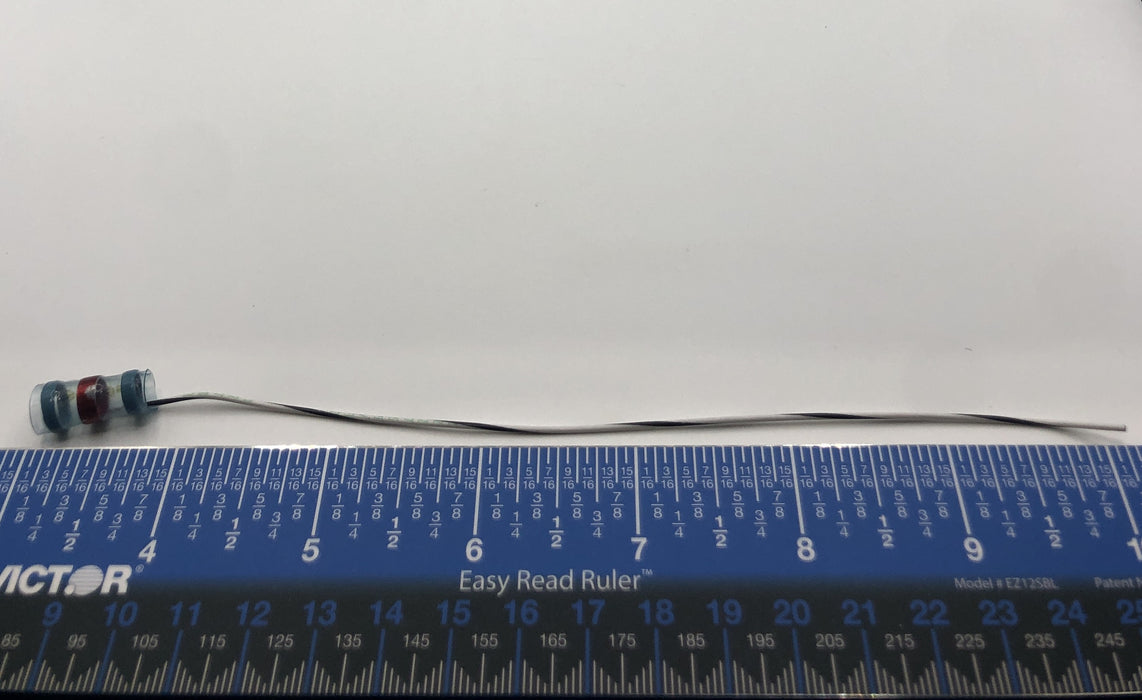

M83519/2-9 - Terminal Solder Sleeve

Part number M83519/2-9 is a heat-shrinkable solder sleeve shield termination splice used for terminating and grounding cable shields in aerospace and military electrical wiring systems. It is part of the SAE AS83519 / MIL-S-83519 series of environmentally resistant solder sleeve devices.

Specifications

• Series: M83519/2
• Type: Shield termination solder sleeve / conductor splice
• Function: Electrical shield grounding and conductor termination
• Insulation: Heat-shrinkable transparent sleeve (PVDF)
• Color Code: White and Black identification bands
• Overall Length: Approximately 0.750 in.
• Features: Preinstalled lead, solder preform, meltable sealing inserts, environmental sealing
• Shield Compatibility: Tin- or silver-plated cable shields
• NSN: 5940-01-135-7087

Features

• Provides simultaneous soldering, insulation, strain relief, and environmental sealing in a single component.
• Transparent sleeve allows visual inspection of solder flow and termination quality.
• Designed for aerospace wiring harnesses exposed to vibration, moisture, and temperature extremes.
• Heat-shrink construction encapsulates and protects the shield termination connection.
