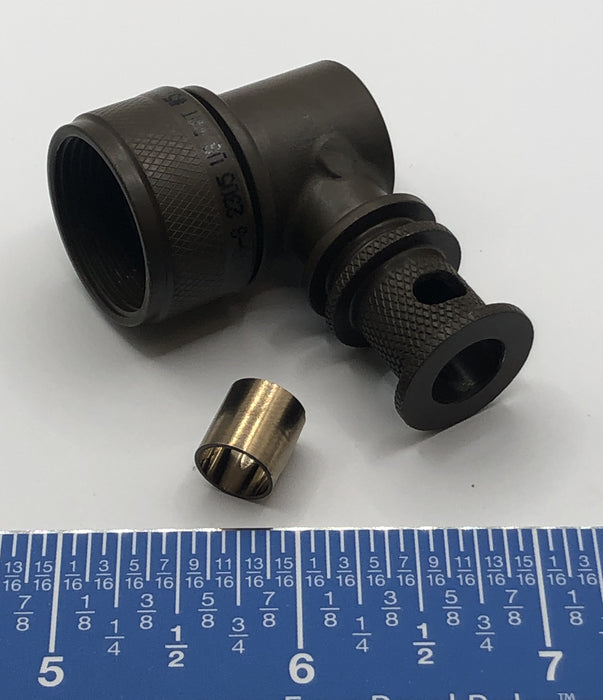

ISOAJ150NF1403-S - Backshell

EMI/RFI Shielded Circular Connector Backshell, 90° Right-Angle, Shell Size 14, 0.375 in Cable Entry, Cadmium Olive Drab over Electroless Nickel Finish, ISO 150 Series. Designed for environmental protection, strain relief, and high-performance shield termination on military and aerospace circular connectors.

Specifications

• Manufacturer: Isodyne
• Series: ISO 150 Series
• Type: EMI/RFI Connector Backshell
• Configuration: 90° Right-Angle (Angular Type J)
• Connector Designator: A (MIL-C-5015 / MIL-C-26482 Series II)
• Shell Size: 14
• Cable Entry Designator: 03
• Cable Entry Size: 0.375 in (9.5 mm)
• Finish Code: NF – Cadmium Olive Drab over Electroless Nickel
• Number of Shield Termination Slots: 2
• EMI/RFI Shielding: Yes
• Shield Termination System: Tool-less Braid Termination
• Compatible Connector Families:
  • MIL-DTL-5015
  • MIL-DTL-26482 Series II
  • MIL-DTL-38999 Series I, II, III, IV
  • MIL-DTL-83723 and related military circular connectors
