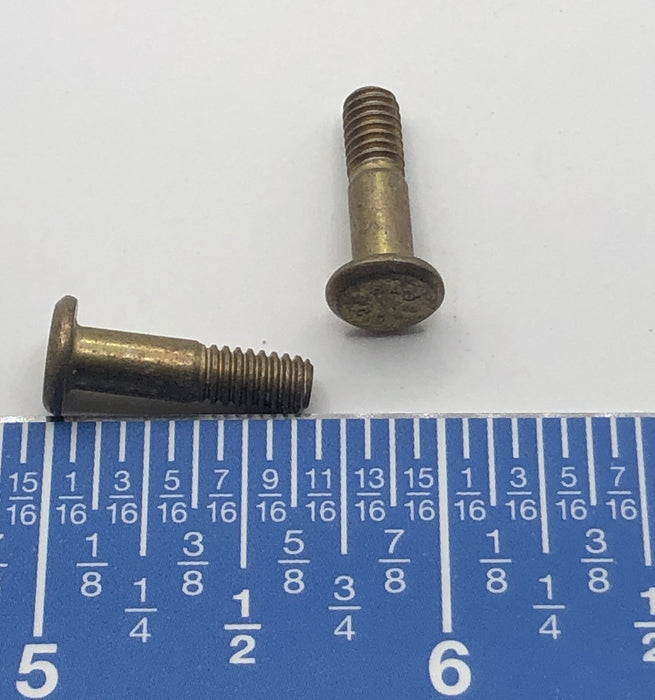

HL32PB5-5 - Pin

Part number HL32PB5-5 is a Hi-Lok pin, an aerospace precision fastening component used in high-strength structural aircraft assemblies. Hi-Lok pins combine the characteristics of a bolt and rivet, providing accurate preload control with reduced installation weight.

The HL32PB series typically features a protruding head configuration with a precision ground shank and threaded end for use with a mating Hi-Lok collar.

Specifications

• Part Number: HL32PB5-5
• Type: Hi-Lok pin / aerospace structural fastener
• Head Style: Protruding head
• Material: Alloy steel or corrosion-resistant steel (series dependent)
• Finish: Cadmium or corrosion-resistant coating typical of aerospace hardware

Dimensions

• Shank Length: 15.36 mm (0.605 in)
• Head Diameter: 2.81 mm (0.111 in)
• Overall Length: 17.29 mm (0.681 in)

Features

• Precision interference-fit aerospace fastener
• Threaded end accepts Hi-Lok collar
• High shear and tensile strength
• Vibration-resistant installation
• Commonly used in aircraft structural joints, panels, and load-bearing assemblies
• Lightweight alternative to conventional bolts in aerospace applications
