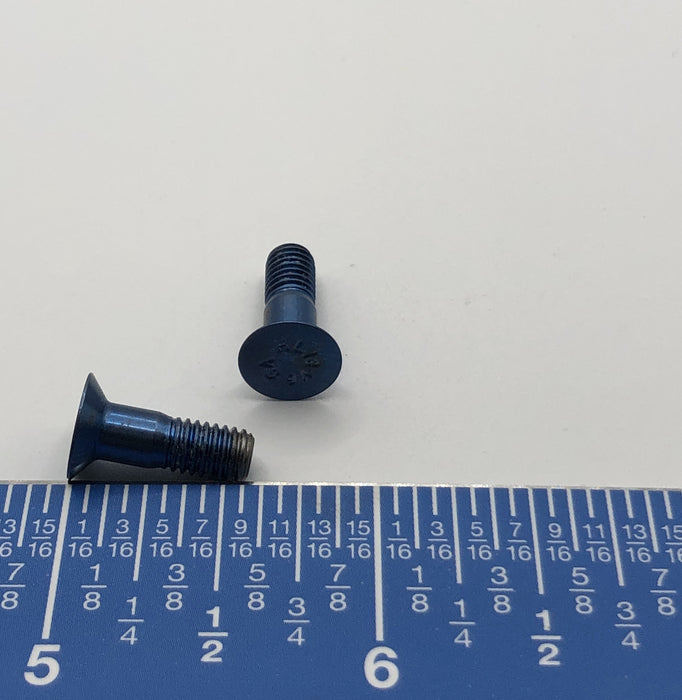

HL13VF6-4 - Hi-Lok

Hi-Lok aerospace fastener pin with flush countersunk head, designed for high-strength structural fastening in aircraft and aerospace assemblies. The fastener features a precision close-tolerance shank and externally threaded end for installation with a compatible Hi-Lok collar, providing controlled preload and vibration-resistant retention. The flush-head configuration allows installation in countersunk holes for smooth aerodynamic surfaces and reduced protrusion in airframe structures.

Dimensions

• Grip Length (GL): 12.75 mm
• Head Diameter (HD): 3.58 mm
• Overall Length (OAL): 13.46 mm

Configuration

• Type: Hi-Lok pin fastener
• Style: Flush countersunk head structural pin
• Thread Style: External threaded end for Hi-Lok collar installation
• Material: Aerospace alloy steel or titanium alloy
• Finish: Corrosion-resistant coated finish
• Features: Close-tolerance precision shank, flush aerodynamic head, vibration-resistant locking system
• Application: Aircraft structural fastening, airframe skin attachment, aerospace panel assemblies, and high-strength mechanical joints
