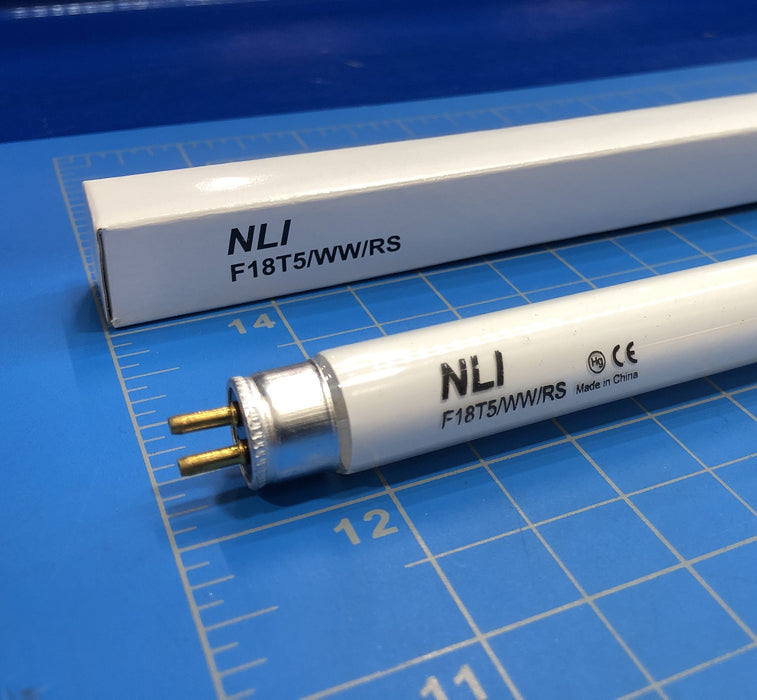

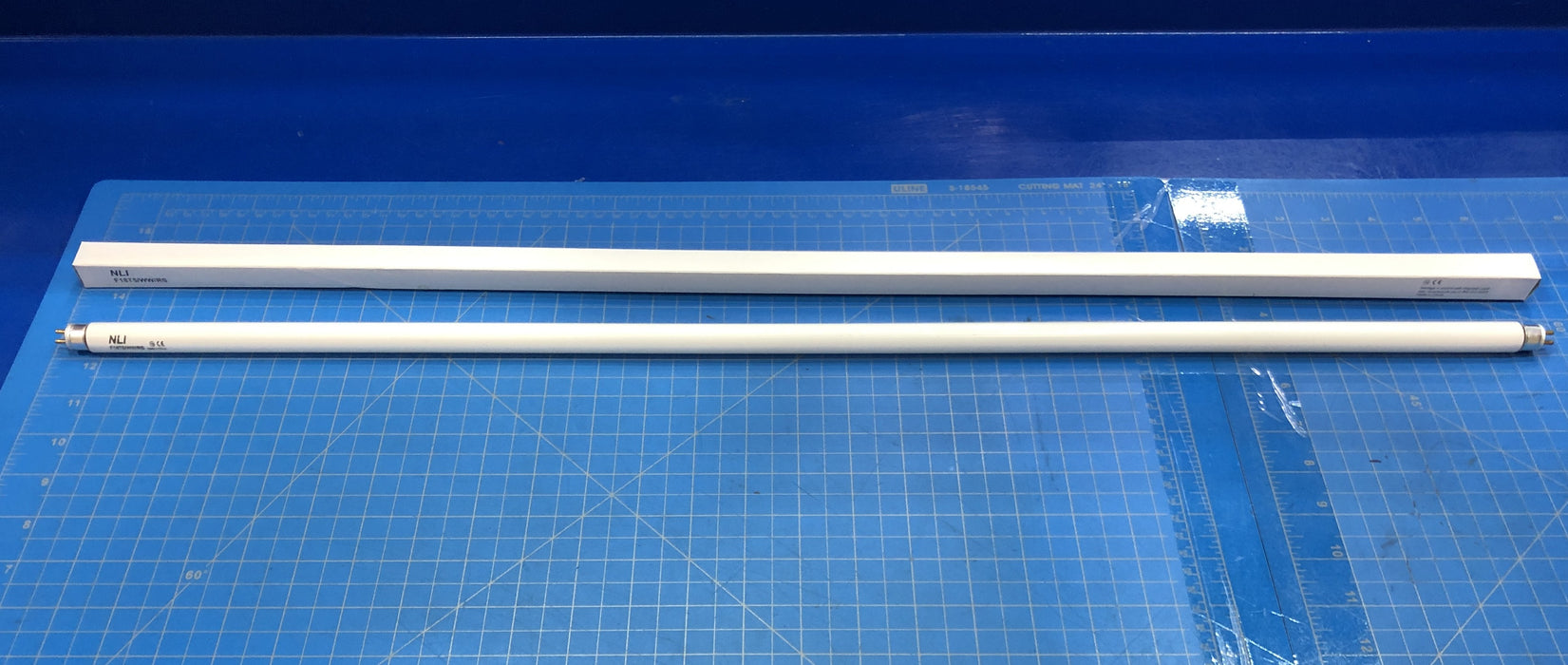

F18T5/WW/RS - Lamp

Linear fluorescent lamp designed for commercial, industrial, and aircraft interior lighting applications. Part number F18T5/WW/RS is an 18-watt T5 fluorescent tube featuring a slim tubular glass construction with bi-pin end connectors for secure installation in compatible fluorescent fixtures.

The lamp produces a warm white (WW) light output suitable for cabin, instrument bay, utility, and general-purpose illumination. The rapid-start (RS) configuration enables dependable starting performance and uniform light distribution.

Dimensions

• Overall Length: 29 1/2 in. (749.30 mm)
• Tube Diameter: 0.58 in. (14.73 mm)

Configuration

• Type: Linear fluorescent lamp
• Lamp Style: T5 tubular fluorescent tube
• Wattage: 18W
• Color Temperature: Warm White (WW)
• Starting Method: Rapid Start (RS)
• Base Type: Bi-pin miniature end caps
• Construction: White coated glass tube with aluminum end caps and dual contact pins
• Features: Slim-profile design, energy-efficient illumination, uniform light output
• Application: Aircraft cabin lighting, utility lighting, industrial fixtures, task lighting, and commercial fluorescent lighting systems
