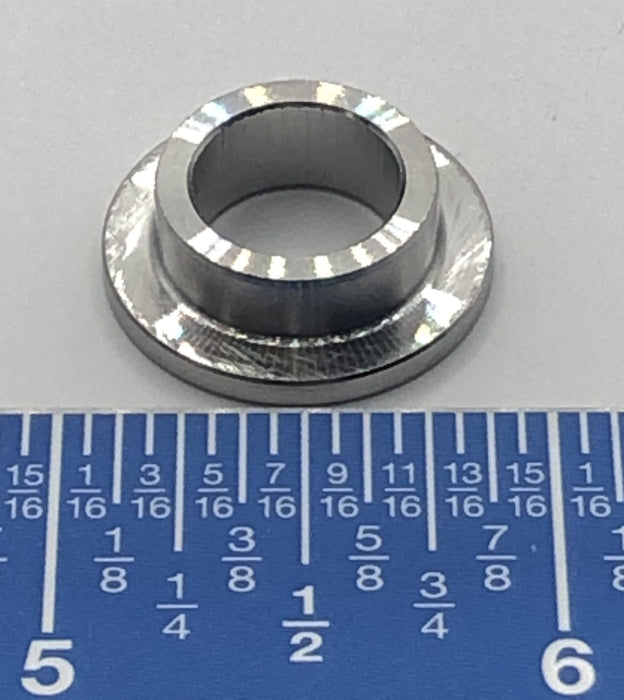

DON206C11S045 - Bushing

Flanged metal spacer bushing, designed to provide precise spacing, alignment, and load distribution in mechanical assemblies. The integrated flange increases surface contact area, helping to stabilize components and prevent pull-through when used with fasteners. Ideal for applications requiring controlled standoff with added support at the mounting surface.

Dimensions:

• ID (Inner Diameter): 0.402 in (10.22 mm)
• OD (Outer Diameter): 0.773 in (19.64 mm)
• H (Height / Length): 0.254 in (6.46 mm)

Configuration:

• Type: Spacer / Bushing
• Material: Metal
• Design: Cylindrical body with integral flange
• Mounting: Slip fit over fastener or shaft
• Function: Spacing, alignment, and load distribution with added surface support
