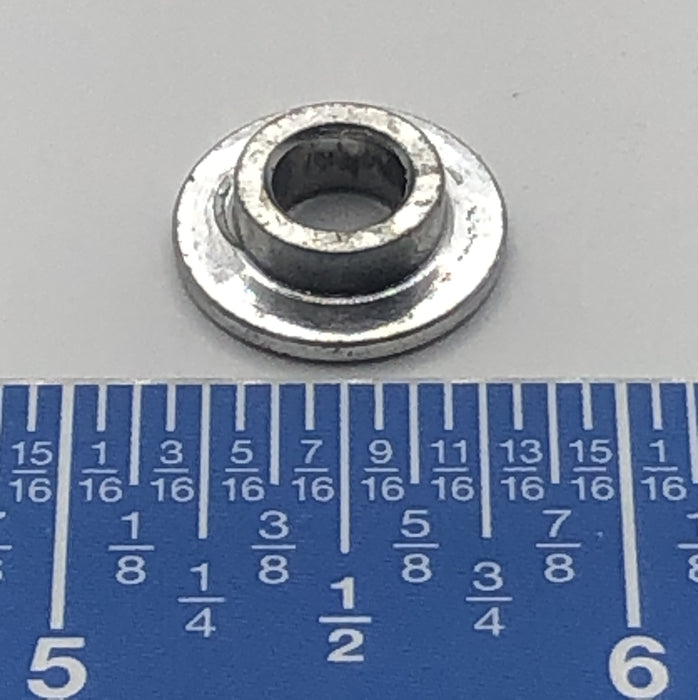

DON204C063K030A - Bushing

Metal flanged spacer bushing, designed to provide precise spacing and load distribution in mechanical assemblies. Features a cylindrical body with an integrated flange to prevent over-insertion and maintain consistent alignment. Commonly used in fastening applications where controlled spacing, wear resistance, and surface protection are required.

Dimensions:

• ID (Inner Diameter): 0.244 in (6.20 mm)
• OD (Outer Diameter): 0.577 in (14.67 mm)
• H (Height / Length): 0.157 in (3.99 mm)

Configuration:

• Type: Flanged Spacer / Bushing
• Material: Metal
• Design: Integral flange with smooth bore
• Mounting: Slip fit over fastener or shaft
• Function: Spacing, load distribution, and surface protection
