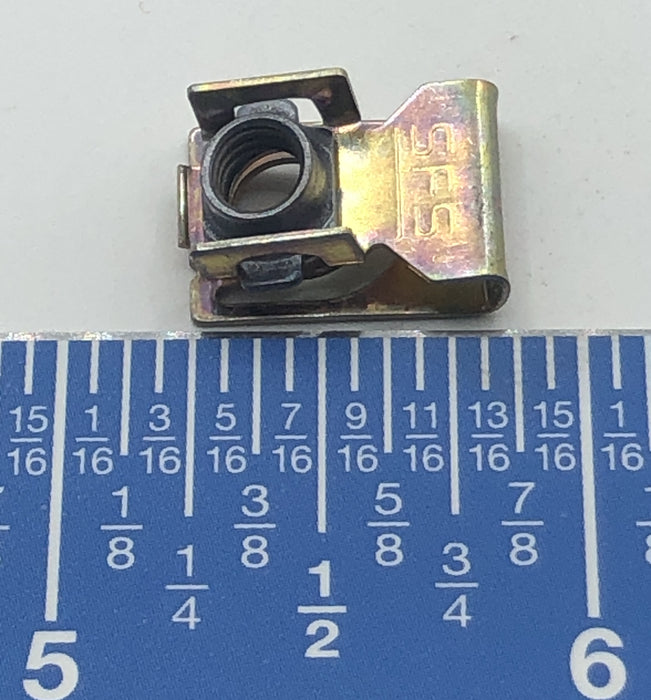

CN5067-M5-1 - Nut

Part number CN5067-M5-1 is a floating clip-on cage nut assembly designed for use in sheet metal panels, equipment racks, enclosures, and aerospace structures where a removable threaded attachment point is required. The spring steel clip body allows quick snap-in installation over panel edges while the floating nut element compensates for minor hole misalignment during assembly.

The integrated cage design securely retains the threaded nut while permitting limited movement for easier fastener engagement. Constructed from corrosion-resistant plated steel, this nut assembly is suitable for vibration-prone and high-service environments.

Dimensions

• Length: 16.10 mm
• Width: 19.81 mm
• Height: 5.74 mm

Configuration

• Type: Floating clip-on cage nut / speed nut assembly
• Part Number: CN5067-M5-1
• Thread Size: M5
• Material: Spring steel and steel nut insert
• Finish: Corrosion-resistant zinc or cadmium-type plating
• Features: Floating threaded insert, quick clip installation, vibration-resistant retention
• Mounting Style: Edge clip / snap-on panel mount
• Applications: Aircraft interiors, avionics panels, access covers, electronic enclosures, automotive panels, and general sheet metal fastening systems
