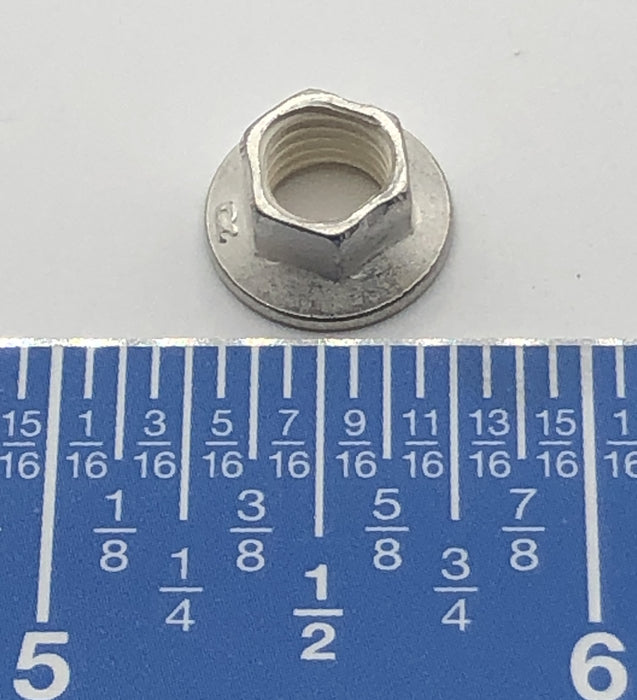

ASN52320CM070E - Nut

Part number ASN52320CM070E is an aerospace-standard flanged hex nut designed for lightweight, high-strength fastening applications in aircraft and precision mechanical assemblies. The integral flange distributes clamp load over a larger surface area, reducing surface damage and eliminating the need for a separate washer in many installations.

Manufactured from corrosion-resistant metal alloy with a precision-machined internal thread, this nut is suitable for use in vibration-prone and weight-sensitive environments where secure fastening and reliability are essential.

Dimensions

• Inside Diameter (Thread ID): 5.94 mm
• Outside Diameter (Flange OD): 11.17 mm
• Height: 4.81 mm

Configuration

• Type: Flanged hex nut
• Standard: ASN52320 aerospace specification
• Material: Corrosion-resistant steel or alloy
• Finish: Passivated / corrosion-resistant finish
• Features: Integral flange base, compact low-profile design, precision internal threads
• Thread Size: Approx. M6 class thread configuration
• Applications: Aircraft structures, avionics assemblies, engine components, access panels, and general aerospace fastening systems requiring lightweight, vibration-resistant hardware
