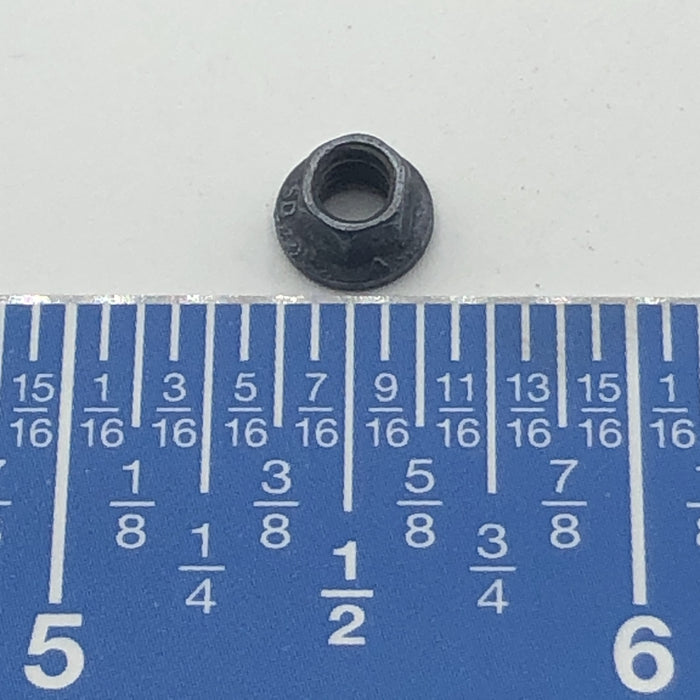

ASN52320BH040N - Nut

Part number ASN52320BH040N is a miniature aerospace-standard self-locking flanged hex nut designed for lightweight, vibration-resistant fastening applications in aircraft, avionics, and precision mechanical assemblies. The integral flange provides increased bearing surface area for improved load distribution while reducing the need for a separate washer.

This all-metal prevailing torque locknut is engineered to maintain secure thread engagement under vibration, thermal cycling, and dynamic loading conditions. Manufactured from high-strength alloy steel with a corrosion-resistant finish, it is suitable for compact installations where reliable retention and reduced weight are critical.

Dimensions

• Inside Diameter (Thread ID): 3.30 mm
• Outside Diameter (Flange OD): 6.11 mm
• Height: 2.82 mm

Configuration

• Type: Miniature self-locking flanged hex nut
• Standard: ASN52320 aerospace specification
• Material: High-strength alloy steel
• Finish: Corrosion-resistant coated finish
• Locking Style: All-metal prevailing torque locknut
• Features: Integral flange, compact low-profile design, vibration-resistant locking action, reusable fastening capability
• Applications: Aircraft instrumentation, avionics hardware, lightweight structural assemblies, electronic enclosures, and precision fastening systems requiring secure retention in limited-space environments
