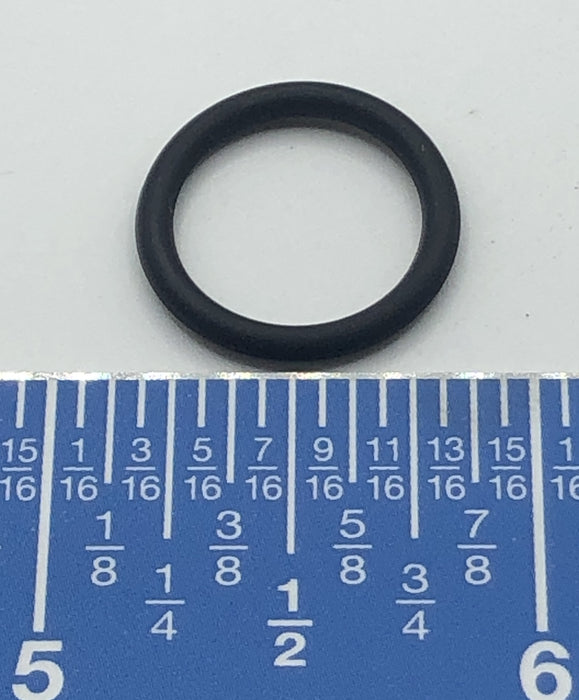

AS3208-07 - O-Ring

Part number AS3208-07 is an aerospace-standard fluorocarbon (FKM/Viton® type) O-ring seal designed for aircraft hydraulic, fuel, lubrication, and pneumatic system sealing applications. Manufactured to AS3208 dimensional standards, this O-ring provides reliable sealing performance in environments exposed to aviation fuels, synthetic oils, hydraulic fluids, and elevated temperatures.

AS3208 series O-rings are commonly used in aerospace fluid connectors, valves, actuators, pumps, and engine accessories where compact, high-reliability sealing is required.

Specifications

• Part Number: AS3208-07
• Type: Aerospace O-ring seal
• Standard: AS3208
• Material: Fluorocarbon elastomer (FKM)
• Application: Fuel, hydraulic, lubrication, and pneumatic sealing
• Color: Black

Features

• Resistant to aviation fuels and hydraulic fluids
• Excellent high-temperature performance
• Good resistance to oil, ozone, and chemical exposure
• Suitable for static and dynamic sealing applications
• Aerospace-qualified dimensional standard
• Used in aircraft engines, pumps, valves, fittings, and fluid systems

Approximate Dimensions

• Inside Diameter (ID): 0.301 in
• Cross Section (CS): 0.070 in
• Outside Diameter (OD): 0.441 in
