AN960XC816 - Washer

Part number AN960XC816 is a special extra-thick flat washer manufactured to the AN960 aerospace standard. The "XC" designation identifies an extra-thick washer, providing additional spacing and bearing surface compared to standard AN960 and AN960L washers. It is intended for use with AN8 (1/2-inch nominal) bolts and fasteners.

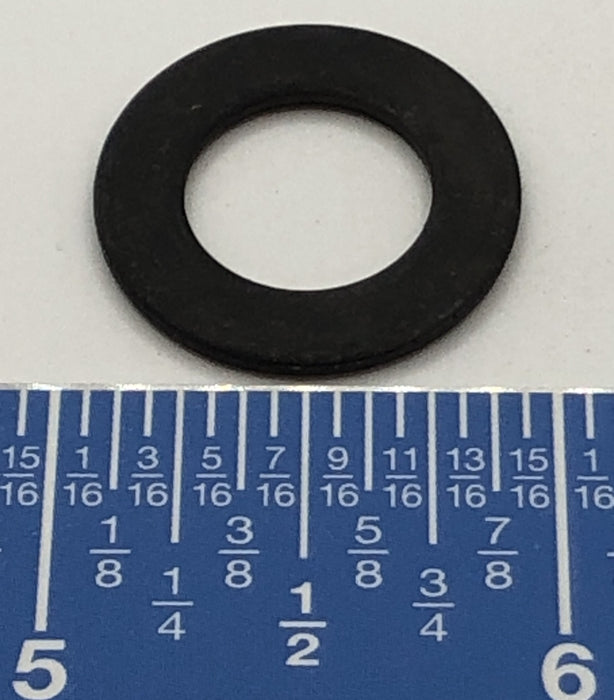

Measured Dimensions (from image)

• Inside Diameter (ID): 14.13 mm (0.556 in)
• Outside Diameter (OD): 22.51 mm (0.886 in)
• Thickness: 1.61 mm (0.063 in)

Physical Characteristics

• Type: Flat washer, extra-thick
• Standard: AN960XC
• Nominal Fastener Size: AN8 (1/2 in)
