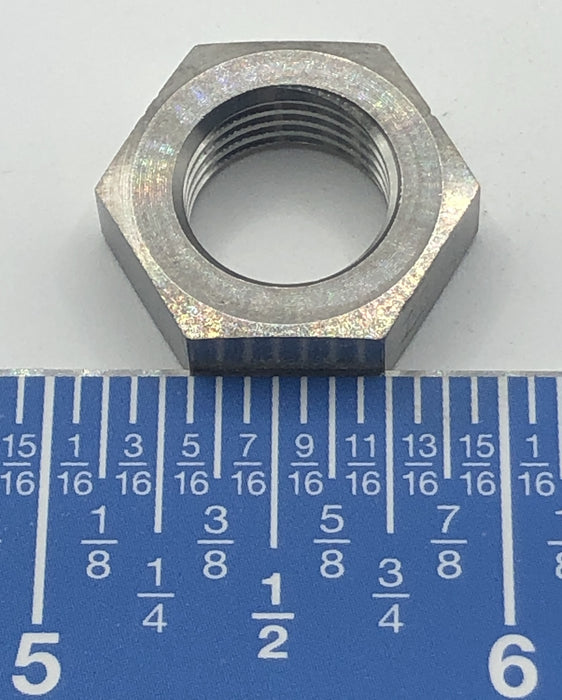

AN924-5J - Nut

Part number AN924-5J is an aerospace-standard jam nut designed for locking and securing threaded fittings, bulkhead fittings, and bearing assemblies in aircraft hydraulic, fuel, pneumatic, and structural systems. The thin-profile hex design allows the nut to be tightened against another nut or fitting to prevent loosening and maintain positional adjustment under vibration and operational loads.

Manufactured from corrosion-resistant steel, the “J” suffix indicates a corrosion-resistant finish/material configuration suitable for aerospace service environments. The compact design makes it ideal for installations with limited clearance and applications requiring lightweight hardware.

Dimensions

• Inside Diameter (Thread ID): 10.85 mm
• Outside Diameter (Hex OD): 18.00 mm
• Height: 6.44 mm

Configuration

• Type: Thin hex jam nut
• Standard: AN924 aerospace specification
• Material: Corrosion-resistant steel
• Finish: Passivated / corrosion-resistant finish
• Features: Thin-profile design, lightweight construction, precision internal threading, vibration-resistant locking when used as a jam nut
• Applications: Aircraft tubing systems, bulkhead fittings, hydraulic assemblies, fuel systems, pneumatic lines, and general aerospace fastening applications requiring positional locking and minimal space usage
