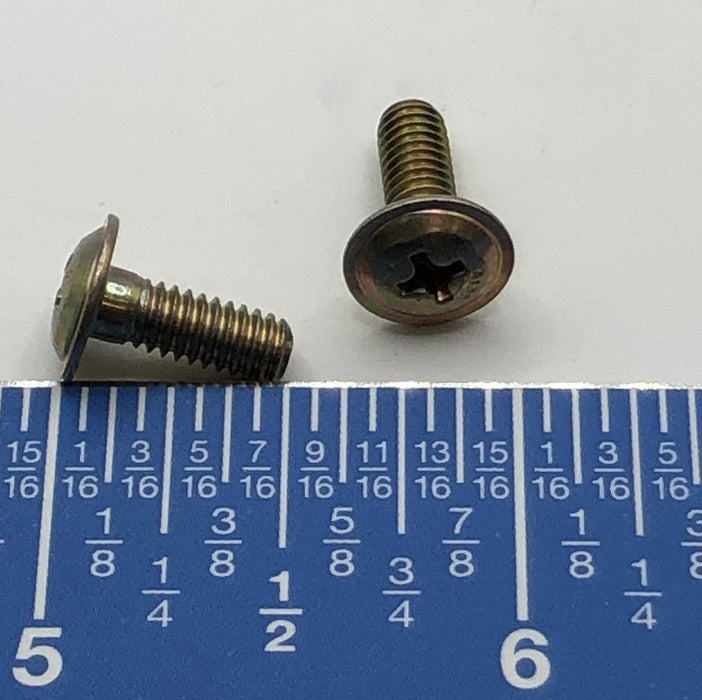

AN525-832R7 - Screw

Part number AN525-832R7 is a washer head machine screw used in aerospace and general mechanical fastening applications. The screw features a low-profile rounded washer head with a Phillips drive, providing improved load distribution and secure fastening.

Specifications

• Type: Washer head machine screw
• Head Style: Rounded washer head
• Drive Type: Phillips recess
• Shank Length: 11.04 mm
• Head Diameter: 4.09 mm
• Overall Length: 13.85 mm
• Thread Style: Fully threaded
• Material: Aerospace alloy steel
• Finish: Cadmium plated / corrosion-resistant finish

Features

• Integral washer head increases bearing surface and reduces material damage
• Phillips drive allows quick installation and removal
• Fully threaded design provides strong thread engagement
• Corrosion-resistant finish for extended durability
• Low-profile head suitable for tight-clearance installations
