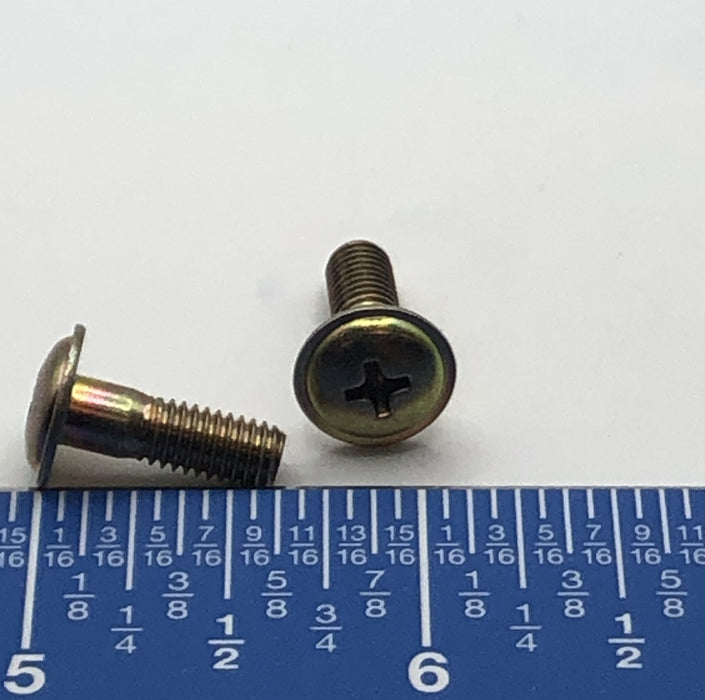

AN525-10R9 - Screw

Part number AN525-10R9 is a washer head machine screw designed for aerospace and general-purpose fastening applications. The screw features a rounded washer head with a Phillips recess, providing enhanced load distribution and reliable installation.

Specifications

• Type: Washer head machine screw
• Head Style: Rounded washer head
• Drive Type: Phillips recess
• Shank Length: 14.80 mm
• Head Diameter: 4.77 mm
• Overall Length: 17.05 mm
• Thread Style: Fully threaded
• Material: Aerospace alloy steel
• Finish: Cadmium plated / corrosion-resistant finish

Features

• Integral washer head helps distribute clamping force evenly
• Phillips drive supports efficient installation and removal
• Fully threaded body ensures strong thread engagement
• Corrosion-resistant finish for durability in harsh environments
• Low-profile rounded head suitable for compact assemblies
