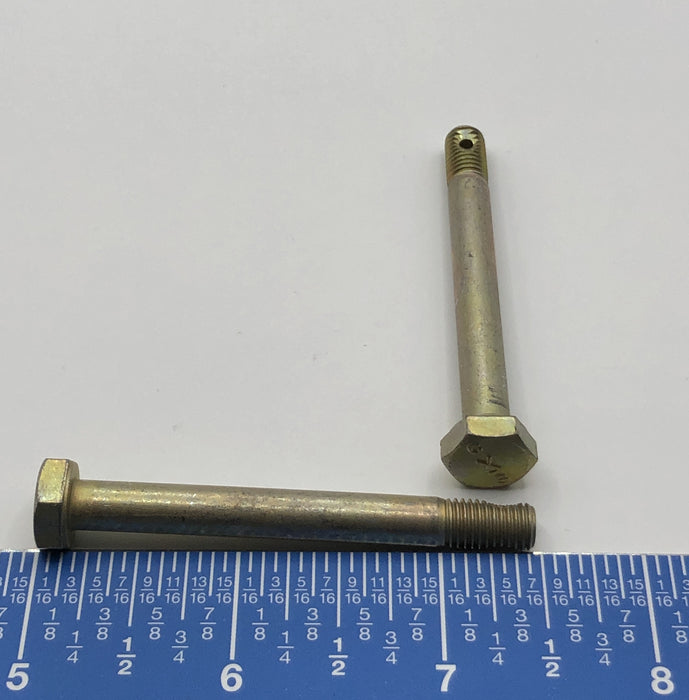

AN4-22 - Bolt

Hex head bolt featuring a precision ground shank with a drilled head for safety wire and a partially threaded end. Designed for structural and critical fastening applications where alignment, shear strength, and vibration resistance are essential.

Dimensions

• L (Shank Length): 58.04 mm
• W (Head Diameter): 6.29 mm
• OL (Overall Length): 62.82 mm

Configuration

• Type: Hex head bolt
• Thread: Partially threaded
• Drive: External hex
• Point: Flat end
• Head Feature: Drilled for safety wire

Features

• Aerospace-grade fastener with precision shank for shear load applications
• Drilled head enables safety wire locking for vibration resistance
• Partially threaded design improves alignment and load distribution
• Corrosion-resistant finish
• Reliable performance in high-stress environments
