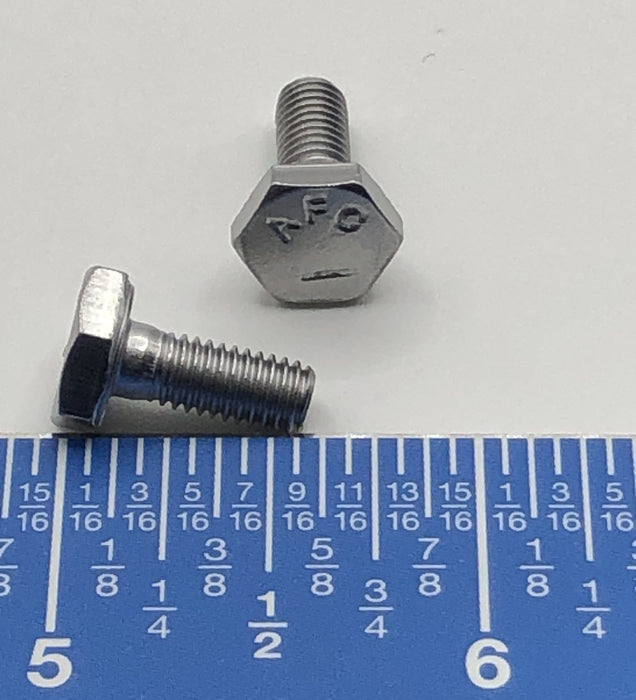

AN3C3A - Bolt

Hex head bolt featuring a partially threaded shank and corrosion-resistant finish. This fastener is designed for precision fit and reliable performance in structural and mechanical assemblies where consistent clamping force and durability are required.

Dimensions

• L (Shank Length): 11.74 mm
• W (Head Diameter): 4.52 mm
• OL (Overall Length): 15.44 mm

Configuration

• Type: Hex head bolt
• Thread: Partially threaded
• Drive: External hex
• Point: Flat end
• Material/Finish: Corrosion-resistant (cadmium-plated, “C” designation)

Features

• Precision-machined shank for improved shear strength and alignment
• Partially threaded design reduces stress concentration in load-bearing areas
• Corrosion-resistant coating suitable for harsh environments
• Compact size ideal for tight assemblies and lightweight applications
• Trusted aerospace-grade reliability
