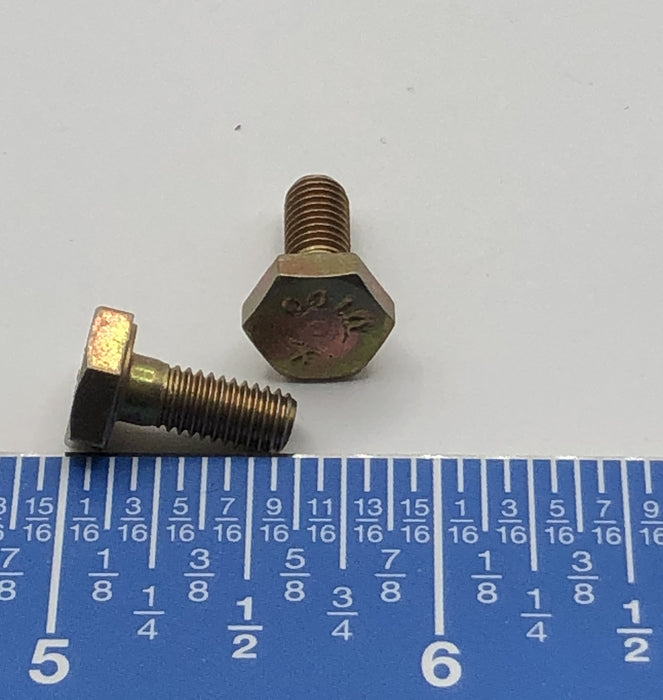

AN3-3A - Bolt

Hex head bolt featuring a partially threaded shank for improved shear strength and alignment. This fastener is designed for reliable use in aerospace and precision mechanical assemblies where strength, consistency, and fit are critical.

Dimensions

• L (Shank Length): 11.95 mm
• W (Head Diameter): 4.67 mm
• OL (Overall Length): 15.19 mm

Configuration

• Type: Hex head bolt
• Thread: Partially threaded
• Drive: External hex
• Point: Flat end
• Material/Finish: Standard steel, corrosion-resistant finish

Features

• Precision-machined shank for proper load distribution and alignment
• Partially threaded design minimizes stress concentration in shear applications
• Durable corrosion-resistant coating for extended service life
• Compact size suitable for tight assemblies and lightweight structures
• Aerospace-grade reliability and consistency
