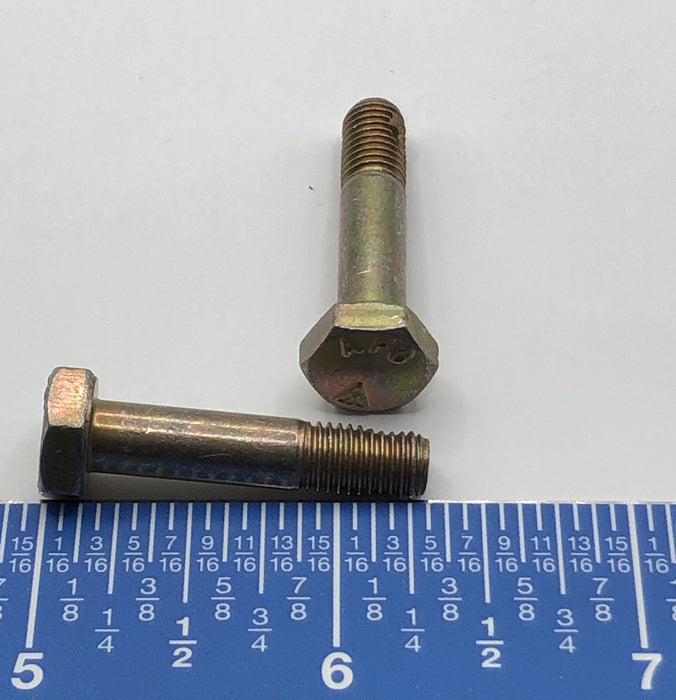

AN174-11 - Bolt

Hex head bolt featuring a precision-machined, partially threaded shank for optimal strength and alignment in load-bearing applications. Designed for aerospace and high-performance mechanical assemblies, this fastener provides dependable clamping and shear performance.

Dimensions

• L (Shank Length): 29.54 mm
• W (Head Diameter): 5.12 mm
• OL (Overall Length): 33.10 mm

Configuration

• Type: Hex head bolt
• Thread: Partially threaded
• Drive: External hex
• Point: Flat end
• Material/Finish: Steel with corrosion-resistant (cadmium-plated) finish

Features

• Precision shank improves alignment and load distribution
• Partially threaded design reduces stress concentration in shear zones
• Corrosion-resistant plating for extended service life
• Durable construction suitable for vibration and repeated load conditions
• Aerospace-grade consistency and reliability
