AN174-10 - Bolt

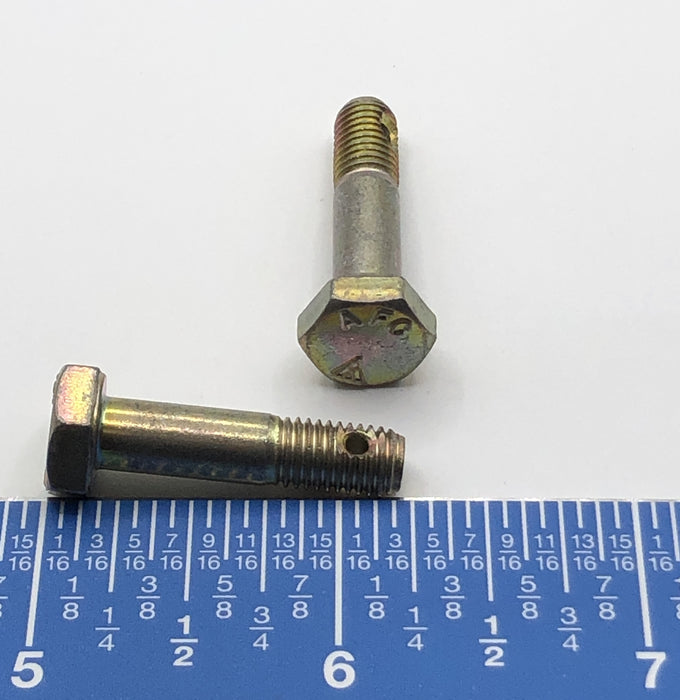

Hex head bolt  featuring a partially threaded shank and a drilled thread end for safety wire installation. Designed for secure fastening in vibration-prone environments, this bolt is commonly used in aerospace and critical mechanical assemblies requiring positive locking.

Dimensions

• L (Shank Length): 26.01 mm
• W (Head Diameter): 5.10 mm
• OL (Overall Length): 29.91 mm

Configuration

• Type: Hex head bolt
• Thread: Partially threaded with drilled shank/thread end
• Drive: External hex
• Point: Flat end with cross-drilled hole (for safety wire)
• Material/Finish: Steel with corrosion-resistant (cadmium-plated) finish

Features

• Cross-drilled thread end allows safety wire locking to prevent loosening
• Precision-machined shank improves shear strength and alignment
• Partially threaded design reduces stress concentration in load-bearing areas
• Corrosion-resistant plating for durability in harsh environments
• Reliable performance in high-vibration and critical applications
